The gas can be heated up to 900°C.

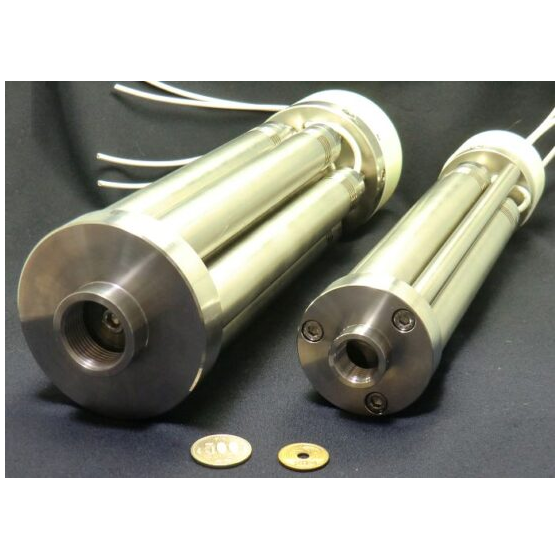

The ABH-28AMX is a hot air heater that can be assembled with either 3 or 6 units of the ABH-28AM3. It can heat the passing gas up to 900°C. By using a thermocouple at the outlet, precise temperature control can be achieved. It has internal threads at the tip, allowing for the attachment of various fittings. There are metal tube cases available in various lengths. For safety and health measures, the heating element temperature can be monitored to prevent overheating. Since it uses transparent gas for heating, it is ideal for photography and video recording.
Inquire About This Product
basic information
For more details, please check the site below.
Price range
Delivery Time
Applications/Examples of results
Cap seal Film shrink Re-dissolving hot melt Resin welding torch Heat sealing of paper packs Heat crimping Heating cutting of resin sheet materials Drying of coaters Drying of printed materials Drying of electric welding tubes Soldering of printed circuit boards Self-fusing of winding coils Deburring of resin molded products Heating of samples for electron microscopy Ignition source for burners Processing of grilled tofu End processing of fibers Production of heated nitrogen gas Preheating of resin sheets Preheating of printed circuit boards Material surface analysis Operational testing of thermoswitches Partial heating of culture media Production of heated sterilizing air Thermal distortion testing of liquid crystals Heating of ammonia gas Seal peeling Heat shrink of lithium batteries Dehumidifying drying of resin pellets Drying of silicon wafers Heating and disinfecting liquids with bubbling Uniform heating of culture media Water removal and drying of metal films Water removal of glass bottles Replacement of gas in all-electric laboratories Drying of printed wire marks Aging of electronic components Adhesion of film and paper Drying of processing holes Internal drying of pipe products Prevention of double feeding and preheating of blank materials Water removal and drying of surface-treated steel sheets Water removal and drying of engine blocks Rapid heating inside processing chambers
Detailed information
-
Hot Air Shot Peening Process Issues High-temperature hot air was necessary to thicken the metal film. ⇒ Improvement Points Shot peening was performed at high temperatures using a hot air heater. The bonding was successful even with the thickened metal film.
-
Hot Air Roasting of Coffee Beans Issues Until now, it has not been possible to roast evenly at the optimal temperature. ⇒ Points for Improvement Roasting was done with a hot air heater. The delicate temperature management of 180°C for the first crack and 200°C to 230°C for the second crack can now be easily controlled in 1°C increments. From light roast to dark roast, city roast, medium roast, and high roast can be easily achieved. Moreover, since the beans are automatically stirred by hot air and heated uniformly from all sides, the variation in roasting has decreased, increasing the product value. With the elimination of high-temperature burnt parts, the variation when ground has decreased, resulting in improved flavor. Additionally, there is a controller that can automatically control roasting time and hot air flow, making it easy to prototype.
-
Burn fitting of small cylinders Issues There was a need for heating equipment that could be used online. ⇒ Points of Improvement Burn fitting was done using a hot air heater. The startup of the line became faster. Installation was easy since no fire was used.
