Multi-channel optical switch OSX-100 | Supports up to 400 channels

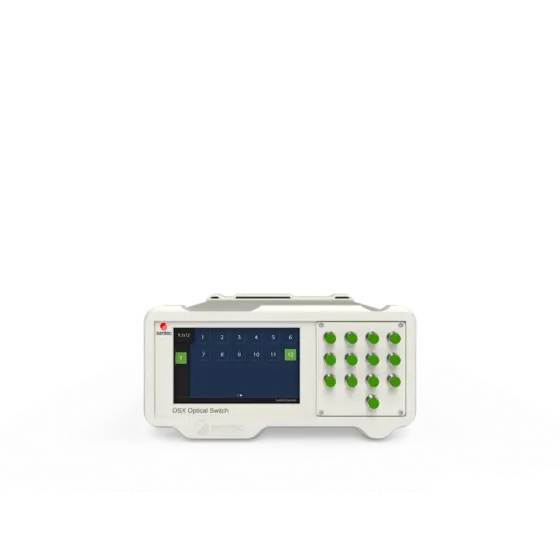

OSX-100
Flexible configuration from 1×2 to a maximum of 1×400. A high-performance optical switch that streamlines the evaluation and mass production testing of optical communication devices and optical fiber products.
The OSX-100 is a customizable benchtop/rack-mounted device that is ideal for testing mass-produced products. It supports both single-mode and multi-mode fibers, and the number of channels can be flexibly configured from 1×2 to a maximum of 1×400. Additionally, it can be configured for 2-input setups, and the output can be changed to synchronized output or tracking output. It can be controlled via USB or Ethernet, and the optical connectors on the front panel and remote head are compatible with various connectors including FC/SC/LC.
Inquire About This Product
Related Videos
basic information
- Up to 400 channels - Ultra-low insertion loss (<0.5 dB) - High reproducibility (±0.005 dB) - Low crosstalk (<−80 dB) - Customizable 【Related Products】 - MEMS Optical Switch OSX-150 | High-speed, low-loss compatible Achieves excellent reproducibility and low insertion loss with high-speed MEMS technology. A compact optical switch that streamlines evaluation tests for DWDM, waveguides, and optical splitters. ↓ For more details, click here https://inst.santec.com/jp/products/test-and-measurement/switch/osx-150
Price range
Delivery Time
Applications/Examples of results
- Testing applications for mass-produced products - Support for evaluation of multi-channel products - Support for automation of product testing - Support for multi-fiber evaluation in combination with Return Loss Meter (RLM)
Detailed information
catalog（1）
Download All Catalogs
Company information
Santec has been manufacturing optical components, laser products, and optical measuring instruments for over 40 years, responding to the stringent quality demands of our customers in the optical industry. Additionally, by constantly seeking innovation and meeting customer requests, Santec has introduced numerous new optical-related products to the market. Our journey towards the creation of the ideal world of light, "OPTOPIA," which is our management philosophy, also involves minimizing the timeline from product concept to commercialization.
