A stabilized light source that consolidates up to 24 light sources and 48 outputs into one unit, contributing to the efficiency of optical communication evaluation and automatic measurement systems.

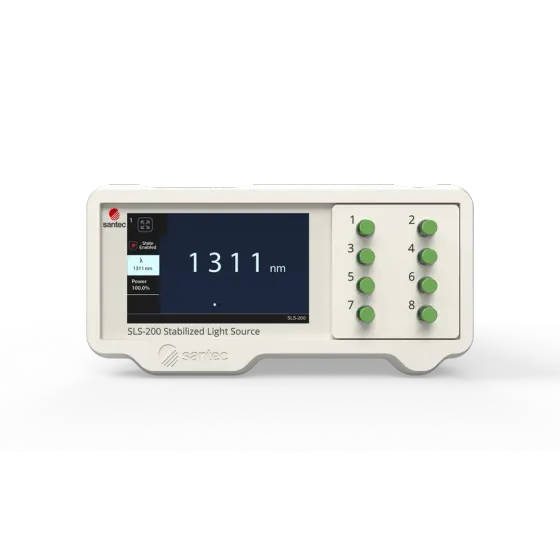

The SLS-200 is a stabilized light source device compatible with various light sources such as LEDs, lasers, and SLEDs. It can accommodate up to 24 individual lasers or LEDs in a single chassis, allowing for flexible configuration based on the type of light source, wavelength, fiber type, output power, and switch type according to the application. For example, the built-in switch allows for flexible routing of internal light sources to multiple ports, enabling the creation of a high-density multi-port testing environment with a single unit. It is offered in a compact rack chassis (1U half-rack / 2U half-rack / 2U full-rack), supporting up to 8/16/48 outputs respectively. It supports remote control via USB or Ethernet (SCPI) and is compatible with common optical connector types such as SC, LC, FC, and ST. Furthermore, due to its excellent output stability and wavelength stability, calibration is not required during normal operation.
Inquire About This Product
basic information
- Supports up to 24 light sources / 48 outputs - Selectable laser / LED / SLED - Compatible with SM and MM fiber - Multiple wavelengths can be output from a single port - Compatible with SC / LC / FC / ST connectors - Supports USB / Ethernet (SCPI) control - Optical output stability: ±0.02dB/h - Stable operation without calibration 【Related Products】 - Stabilized light source SLS-230 for ELSFP simulator | Supports up to 16 channels Accurately simulates ELSFP light sources. Contributes to the efficiency of CPO module development and testing. https://inst.santec.com/jp/products/test-and-measurement/lightsource/sls-230
Price range
Delivery Time
Applications/Examples of results
- Optical alignment applications - Environmental testing of optical components and optical cables - Real-time insertion loss (IL) monitoring - Evaluation of optical communication devices - Integration into automatic measurement systems - Research and development as well as mass production testing <Light Source Specifications> In the DFB configuration compatible with the CWDM wavelength plan, wavelengths from 1271 to 1611 nm can be selected in 20 nm steps. FP lasers and LED light sources are also available, accommodating configurations according to application needs. The optical output stability achieves ±0.02 dB/h, providing a stable measurement environment.
Detailed information
catalog（1）
Download All Catalogs
Company information
Santec has been manufacturing optical components, laser products, and optical measuring instruments for over 40 years, responding to the stringent quality demands of our customers in the optical industry. Additionally, by constantly seeking innovation and meeting customer requests, Santec has introduced numerous new optical-related products to the market. Our journey towards the creation of the ideal world of light, "OPTOPIA," which is our management philosophy, also involves minimizing the timeline from product concept to commercialization.
