Variable Laser CEL Series | High Stability, Narrow Line Width, External Cavity Laser
CEL / CEX / CEF
Quantum technology for achieving narrow linewidth and low noise variable lasers for precision spectroscopy.

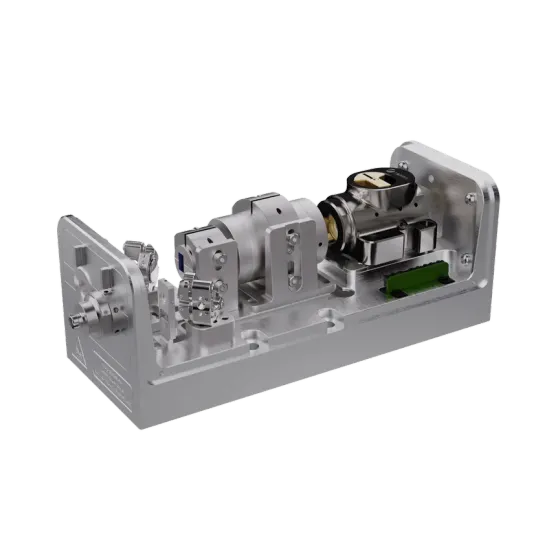

The CEL series is a CatEye-type external cavity laser that achieves high stability and narrow linewidth. Its unique CatEye resonator design combines the robustness of DFB/DBR light sources with the wide wavelength tunability of external cavity lasers, making it suitable for precision spectroscopy, quantum technology, and advanced photonics research. The CatEye structure, which reduces the angle dependence of the wavelength, ensures high reproducibility and long-term stability. When combined with a laser controller, it can accommodate narrow linewidths below 100 kHz, making it applicable for high-resolution spectroscopy and applications where coherence characteristics are important. Additionally, it supports system expansion through combinations with amplifiers and frequency conversion modules.
Inquire About This Product
basic information
- Narrow linewidth: Below 100 kHz - Wideband wavelength range: 630–1100 nm (Product features) - Supported wavelength range: 630–1620 nm (Series expansion) - Maximum output: 250 mW - CatEye-type external resonator structure - Low noise characteristics - Modulator option within the resonator - USB/TCP-IP connectivity support (CEX/CEF models) - Integration of mLC, optical isolator, and optical fiber coupling mechanism <System Integration> Designed with the assumption of integration into advanced photonics systems. Supports output expansion through combinations with semiconductor amplifiers and optical fiber amplifiers. Additionally, wavelength extension into the visible and ultraviolet regions is possible through the use of SHG and nonlinear wavelength conversion modules. <Related Products> - CatEye-type external resonator SAF laser CES | Ultra-narrow linewidth model High coherence laser with a typical linewidth of approximately 5 kHz. Suitable for quantum systems and precision measurement applications. https://inst.santec.com/jp/products/quantum-instruments/quantum-lasers/ces
Price range
Delivery Time
Applications/Examples of results
- Precision spectroscopy - High-resolution spectroscopy - Quantum technology research - Quantum optics - Atomic physics - Laser cooling - Atomic trapping - Advanced photonics research - Nonlinear optics - Frequency conversion systems (SHG, mixing processes) - Seed light source for semiconductor amplifiers - Seed light source for fiber optic amplifiers Utilizing narrow linewidth and high wavelength stability, it is suitable for research and development applications where coherence performance and wavelength control are important.
Detailed information
-
<High Stability Wavelength Control Using CatEye Resonators> In the CatEye configuration, reflectors with self-alignment properties and ultra-narrow band filters are used instead of conventional diffraction gratings. This enables wavelength tuning over several tens of nanometers without the need for realignment of the optical system.
-
<Excellent reproducibility due to low-angle sensitivity> The angle dependence of the wavelength is reduced by about one order of magnitude compared to the Littrow configuration, achieving high stability and reproducibility.
-
<Combining narrow linewidth and high output> Achieves a narrow linewidth of less than 100 kHz through combination with a laser controller. Additionally, it supports a maximum output of 250 mW, making it widely applicable for research purposes.
