Injection Locking Amplifier ILA | Blue Color, High Output Visible Light Amplification
ILA
Blue color - Achieving high output and narrow linewidth in the visible range. Injection-locked amplifier for laser cooling and quantum technology.

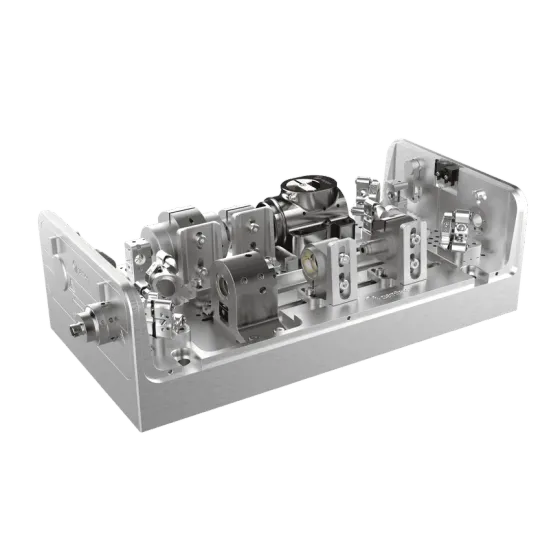

The Injection Locking Amplifier (ILA series) utilizes injection locking technology to provide high output and narrow linewidth light in wavelength ranges that are difficult to achieve. It is designed as a compact alternative to frequency doubling (SHG) systems, achieving excellent beam quality and high spectral purity required for precision applications. Furthermore, its unique automatic tracking control system continuously stabilizes the injection locking state, suppressing the high sensitivity to environmental drift that has been a challenge in Fabry-Pérot diode amplifiers.
Inquire About This Product
basic information
- Maximum output of 800mW at 461nm - Equipped with automatic tracking injection locking - High coherence and high spectral purity - Achieves excellent beam quality - Can be used as an alternative light source for SHG systems - Supports single-mode fiber output (optional) - Supports multi-stage isolators (optional) - Rack mountable 【Related Products】 - High-power frequency-doubling laser MSHG | Seed, amplification, and SHG integrated A frequency conversion system that realizes high-power visible and ultraviolet lasers. https://inst.santec.com/jp/products/quantum-instruments/frequency-conversion/mshg - Ultra-narrow linewidth laser CES | Approximately 5kHz narrow linewidth support A high coherence seed light source for quantum technology and precision spectroscopy. https://inst.santec.com/jp/products/quantum-instruments/quantum-lasers/ces
Price range
Delivery Time
Applications/Examples of results
- Laser cooling and trapping applications (Sr, Yb, Yb⁺) - Ideal for optical lattice clocks / optical clock systems - Suitable for Rydberg excitation experiments - Compatible with precision spectroscopy applications - Optimal for quantum optics applications - Suitable for advanced photonics research applications
Detailed information
-
<Automatic Tracking Injection Lock> Maintains the locked state through continuous state monitoring and real-time control. It minimizes the effects of environmental fluctuations, achieving stable operation over extended periods.
-
<High Coherence and High Beam Quality> Achieves high output while maintaining narrow linewidth characteristics and high spectral purity. Suitable for precision spectroscopy and quantum optics applications.
-
<Corresponding to the main atomic transition wavelengths> It corresponds to the main wavelengths used in atomic physics experiments, such as 399nm (Yb), 461nm (Sr), 480nm・509nm (Rb/Cs Rydberg), and 657nm・698nm (optical clocks).
-
<Flexible Output Configuration> We offer options such as single-mode fiber output, multi-stage isolators, and dual outputs to support system construction tailored to your needs.
