Compact integration of seed laser, optical amplifier, and frequency conversion. High-stability fiber laser system compatible with Yb/Er wavelength range.

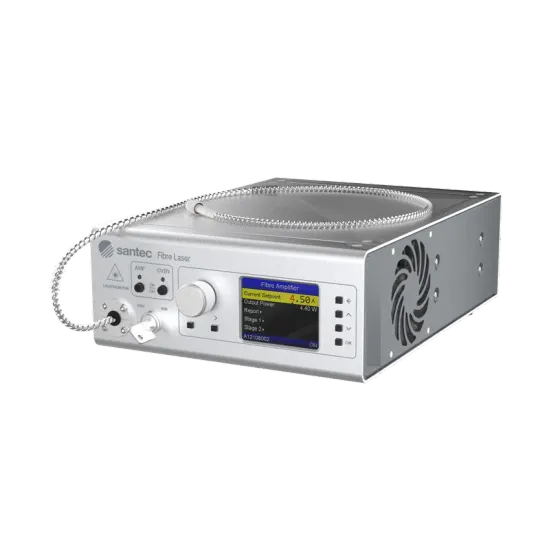

A compact fiber laser system that integrates amplification and wavelength conversion. The MGPA series is a laser system that combines a seed laser and a fiber amplifier into a compact standalone platform. It supports both ytterbium (Yb) and erbium (Er) wavelength bands, offering stable output and flexible configuration options, as well as frequency conversion options. Designed with a focus on system integration, it accommodates both built-in and external seed light sources and allows for remote control via USB-C or TCP/IP.
Inquire About This Product
basic information
- Maximum output of 1 W - Compatible with Yb/Er wavelength band - Supports waveguide-type frequency doubling (SHG) option - Option to select built-in or external seed light source configuration - Supports remote control via USB-C/TCP/IP <System Integration> The compact fiber amplifier (MGPA system) is designed for smooth integration into fiber-based experimental setups. It can be used in combination with built-in or external seed light sources, including DFB/DBR lasers and CatEye-type external cavity SAF lasers (CES system). Furthermore, by using it in conjunction with waveguide-type frequency doubling elements, the available wavelength range can be expanded. <Related Products> - CatEye-type external cavity SAF laser CES | Ultra-narrow linewidth seed light source A seed laser that can be used with MGPA. It has high coherence characteristics and is suitable for spectroscopy and quantum technology applications. https://inst.santec.com/jp/products/quantum-instruments/quantum-lasers/ces
Price range
Delivery Time
Applications/Examples of results
- Application to fiber optic-based photonics systems - Supports frequency conversion and nonlinear optical applications - Ideal for quantum optics and sensing applications - Suitable for spectroscopy and measurement applications - Applicable for OEM purposes and compact system integration
Detailed information
-
<Seed Integrated Fiber Amplifier> It is a turnkey system that integrates a seed laser and an amplifier, achieving high functionality in a compact installation area.
-
<Corresponding to Yb/Er wavelength bands> 1000–1120 nm (Yb) 1530–1610 nm (Er)
-
<Maximum 10W optical output> The output depends on the configuration and wavelength conditions of the seed light.
-
<Frequency Conversion Options> Wavelength conversion to the visible light range is achieved using waveguide-type second harmonic generation (SHG) elements. 500–560 nm 765–805 nm
-
<Control with High Flexibility> Supports standalone operation with remote access via USB-C or TCP/IP, enabling flexible control and easy integration into systems.
