Frequency Conversion Module MGFM | High Output SHG and Wavelength Mixing Compatible

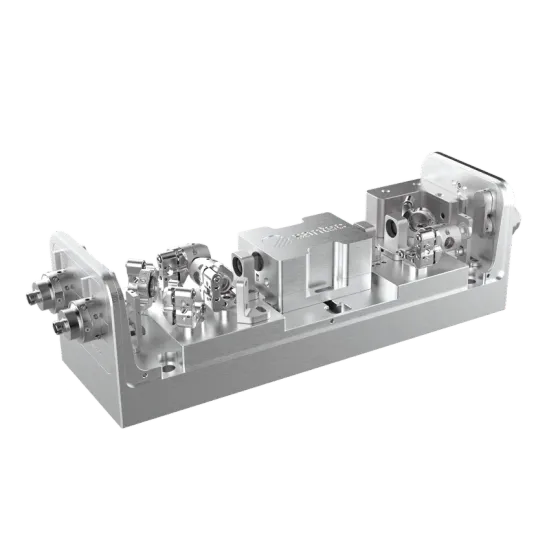

MGFM
Achieving high-efficiency frequency doubling and wavelength mixing using QPM nonlinear crystals. A wavelength conversion solution for high-power lasers that is easy to handle and does not require a resonator.
Flexible frequency conversion for high power and multi-wavelength applications The MGFM series is a frequency conversion system that achieves high-efficiency frequency doubling and wavelength mixing without the need for an optical resonator by using a single-pass quasi-phase-matched (QPM) nonlinear crystal. Designed with an emphasis on flexibility and a simple configuration, it accommodates a wide wavelength range and diverse setups. It features an integrated temperature control mechanism and supports fiber-coupled operation, providing a practical and user-friendly wavelength conversion solution suitable for both research and OEM applications.
Inquire About This Product
basic information
- Supports SHG and SFG with single-pass - No cavity lock required - Compatible with a wide wavelength range - Built-in temperature control mechanism (USB-C control compatible) - Supports optical fiber coupling system configuration <System Integration> The MGFM is designed for easy integration into existing optical systems. It does not require cavity locking and supports optical fiber coupling, allowing for flexible use from standalone applications to integration into advanced photonics systems. <Related Products> - High-power fiber amplifier MFE | High-power laser light source Can be used as an excitation source for MGFM. Compatible with the Yb/Er wavelength range and suitable for nonlinear wavelength conversion applications. https://inst.santec.com/jp/products/quantum-instruments/amplifiers/mfe
Price range
Delivery Time
Applications/Examples of results
- Supports flexible wavelength conversion - Supports frequency mixing and custom wavelength generation - Ideal for quantum optics and atomic physics applications - Suitable for spectroscopy and sensing applications - Applicable for OEM purposes and compact photonics systems
Detailed information
-
Single-pass conversion (resonator-less configuration) By using a single-pass configuration without a resonator, it achieves operation that does not require cavity locking, providing simplicity and high robustness.
-
<Wavelength Conversion Using PPLN Crystals> By adopting a variable-type PPLN crystal, it can accommodate major wavelengths such as 780 nm, 795 nm, 765 nm, and 644 nm, flexibly adapting to a variety of applications.
-
<Support for Frequency Doubling / Sum Frequency Generation> The dual input configuration allows for both SHG (Second Harmonic Generation) and Sum Frequency Generation (SFG).
-
<Equipped with temperature control mechanism> It is equipped with a high-precision crystal oven and supports temperature control via USB-C connection.
-
<Compatible with optical fiber coupling> It supports optical fiber input and output, enabling easy integration into optical systems.
