Supports AOM control, laser stabilization, and quantum experiments with high-speed modulation up to 10 MHz and 2-channel high-output RF.

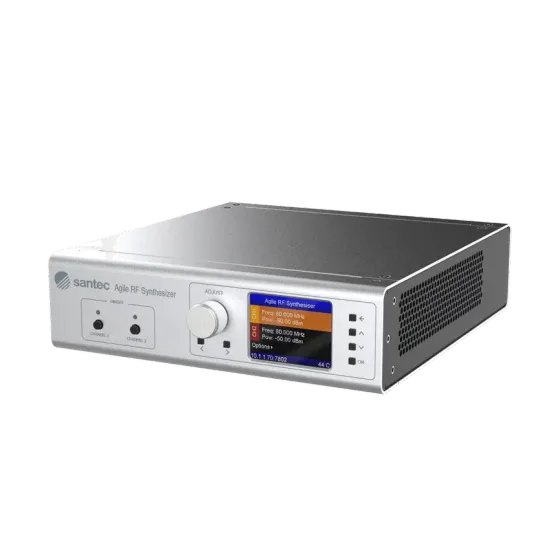

XRF is a high-performance 2-channel RF signal source for optical and quantum experiments. It supports RF output of 20–400 MHz with a maximum of 4W per channel and can modulate frequency, amplitude, and phase over a bandwidth of up to 10 MHz. The FPGA-driven DDS architecture generates complex FM/AM/PM sequences by combining interpolation, loops, ramps, and external triggers. It can flexibly configure the RF signals necessary for direct driving of AOMs, laser stabilization, and quantum state control in a single unit. It also supports control via USB/Ethernet, facilitating integration and automation into research systems.
Inquire About This Product
basic information
- 2-channel RF output: 20–400 MHz, maximum 4W/channel - Analog modulation bandwidth: up to 10 MHz - FM/AM/PM sequence generation - Built-in PID feedback and noise suppression functions - USB/Ethernet control compatible <Main Features> - Dual AD9910 DDS core - Supports interpolation, loop, ramp, and external trigger - Sequence playback using Python, MATLAB, LabVIEW <Related Products> - 4-channel RF synthesizer QRF | For AOM control Equipped with synchronized 4 channels and RF power amplifier. Suitable for multi-beam optical control. https://inst.santec.com/jp/products/quantum-instruments/electronics/qrf
Price range
Delivery Time
Applications/Examples of results
- Direct drive of AOM (Acousto-Optic Modulator) - Laser intensity stabilization, noise suppression - Laser frequency locking - Quantum state control - Quantum optics, atomic physics experiments - High-resolution spectroscopy - Generation of complex FM/AM/PM waveforms - Integration into optical and quantum control systems
Detailed information
-
<High-Speed Modulation> Controls frequency, amplitude, and phase with high precision in an analog modulation bandwidth of up to 10 MHz.
-
<2-channel high output> Equipped with independent 2 channels from 20 to 400 MHz, each channel outputs a maximum of 4W (+36dBm).
-
<Complex Waveform Generation> Using FPGA and dual AD9910 DDS cores, it generates FM/AM/PM sequences combining interpolation, loops, ramps, and external triggers.
-
<PID Control> All parameters can be controlled via USB/Ethernet, and it supports sequence playback using Python, MATLAB, and LabVIEW.
