Complies with the highest safety standards PL e / SIL 3. Minimizes the risk of malfunctions and unexpected accidents, supporting safety management in harsh environments.

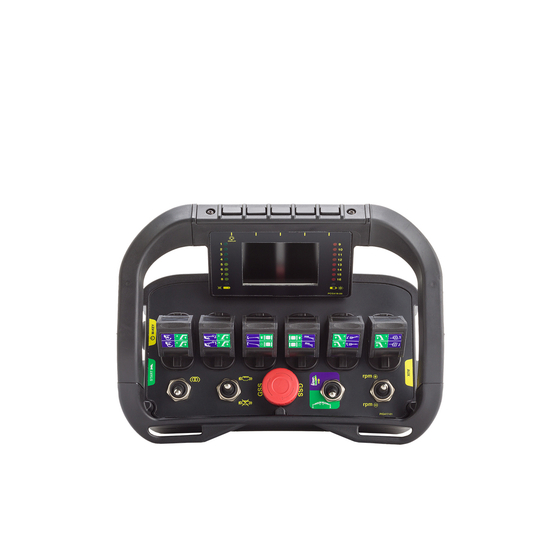

"Minimizing the Risk of Serious Accidents in Heavy Machinery Operations" In construction sites, forestry, and the operation of special vehicles, malfunctions of radio remote controls can lead directly to serious accidents that endanger human lives. To ensure thorough safety management on-site, a highly reliable control system based on international safety standards is essential, rather than just simple remote control. The industrial radio remote control "LINK PJN" complies with the highest level of safety control, the international standards PL e / SIL 3. ■ Three Features Ensuring Safety - Highest Safety Standards: Compliant with PL e and SIL 3. The dual structure of internal circuits ensures advanced reliability, allowing for a safe stop in the event of a failure. - Thorough Malfunction Prevention: Unique communication protocols and encryption technology eliminate unexpected behaviors caused by external radio interference and crosstalk. - Reliable Emergency Stop Function: Equipped with an emergency stop switch that excels in visibility and responsiveness, ensuring the heavy machinery can be stopped reliably in emergencies. By introducing this product, it becomes possible to respond to sites that require high safety standards, ensuring the safety of workers. For more details, please check the PDF by downloading the "Catalog" below or feel free to contact us.
Inquire About This Product
basic information
■Basic Specifications ・Safety Level: PL e (ISO 13849-1) / SIL 3 (IEC 62061) ・Protection Rating: IP65 (both transmitter and receiver) ・Operating Temperature: -20℃ to +70℃ (-4°F to +158°F) ・Housing Material: PA6 GF (glass fiber reinforced polyamide) ・Operating Range: Approximately 100m (330ft) ■Transmitter (LINK PJN) ・Antenna: Built-in ・Power Supply: Dedicated lithium-ion battery (3.7V / 2000mAh) ・Continuous Operating Time: Up to approximately 20 hours (at 20℃) ・Dimensions: 170 × 45 × 28 mm ・Weight: Approximately 190g ■Communication Specifications ・Frequency Band: 2.4GHz ・Function: Equipped with FHSS (Frequency Hopping Spread Spectrum) / LBT (Listen Before Talk) interference prevention function.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
