You can effectively utilize the existing weir drop! The height of the waterwheel can be adjusted.

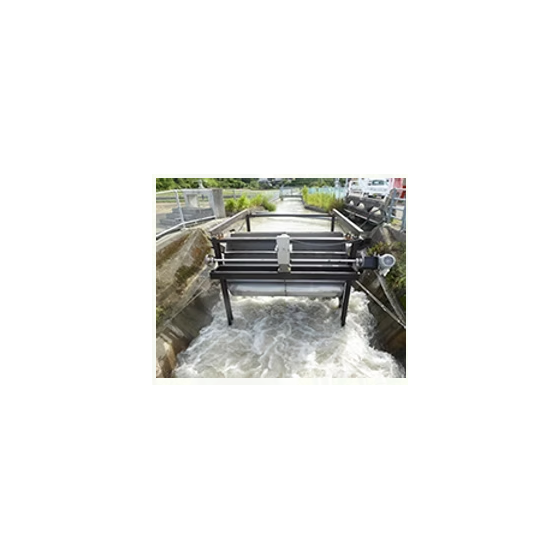

We would like to introduce our "Underhung Generator." This product utilizes a drop structure for agricultural use. It can be designed and manufactured to meet installation conditions. Please feel free to contact us when you need assistance. 【Features】 ■ Adjustable height of the water wheel ■ Can be raised to the top during floods ■ Minimal installation work required and cost-effective *For more details, please refer to the related links or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■Power generation capacity: 6kw (max) ■Turbine type: Undershot water wheel ■Turbine outer diameter: φ1500mm ■Head: 0.5–3m ■Flow rate: 0.5–10m3/S ■Device dimensions: Length 2,000 × Width 2,800 × Height 3,715mm ■Device weight: Approximately 1,300kg *For more details, please refer to the related links or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the related links or feel free to contact us.
Company information
At the time of its establishment, we focused on the utilization of bamboo, as indicated in our company name, followed by the development of small hydropower generators using the same local resource, water, and further, the development of energy-saving LED application products. All the development projects we have undertaken are important themes that contribute to CO2 reduction, which is essential for realizing a sustainable global environment in the future. —Corporate Philosophy— We create value through the effective use of local resources and environmental technological innovation, contributing to the revitalization of local industries.
