Eliminate burrs and distortions in ultra-thin foil! Ultra-precision small laser processing machine LTC6050.

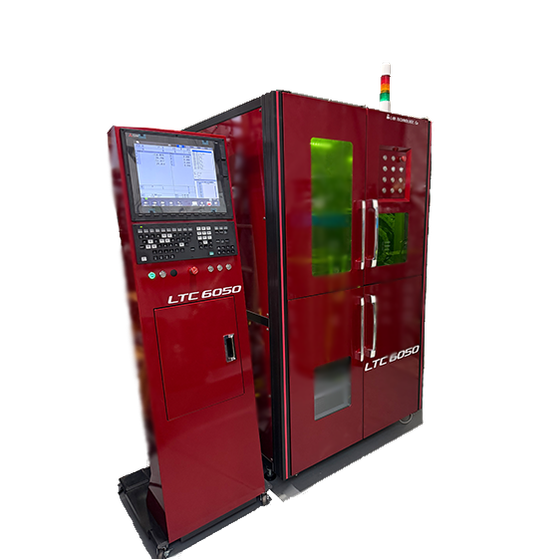

Ultra-precision compact fiber laser processing machine 'LTC6050'
For those struggling with deburring and distortion in thin plate processing! Achieve fine cutting with a minimum beam diameter of 10μm to prevent rework and deterioration of yield.
Are you facing the following troubles in the processing site of thin plates or ultra-thin foils? - The delivery time for etching arrangements takes too long, making it difficult to respond to sudden specification changes in prototypes. - Ultra-thin workpieces become distorted during press processing, leading to a rush of correction work in subsequent processes. - Heat effects during laser cutting cause dross and burrs to form, increasing the manual removal workload. The ultra-precision small fiber laser processing machine 'LTC6050' fundamentally solves these on-site issues. 【Three strengths of this product】 High-density processing with a minimum beam diameter of Φ10μm: It can accurately perform fine cutting and drilling from ultra-thin foils of 10 microns to 2mm thickness. Compact design with a processing range of 600×600mm: It occupies a space of about 1.3m×1m while supporting precise cutting of spring materials and shim plates. Fusion of domestic NC and stable oscillators: With a reliable domestic design and manufacturing using an IPG500W oscillator and Mitsubishi NC, it maintains high processing accuracy even during continuous operation. Would you like to achieve shorter prototype delivery times and a zero-rework site? *For more details, please download the PDF document or feel free to contact us.
Inquire About This Product
Related Videos
basic information
【Specifications】 ■Processing accuracy: 1/100mm ■Added work distortion ・180μm (sus0.03mm) ・4pm (sus0.1mm) ■Perpendicularity: 89.936° ■Roundness: 0.01° *For more details, please download the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applicable Industries and Processes】 - Electronic components and precision machinery manufacturers: Fine cutting processes for contact pins, springs for relays, and terminal components. - Automotive and transportation equipment manufacturing: Prototype and small-lot production of shims and gaskets for precise adjustments around engines and transmissions. - Medical device development: Processing of stainless steel fine pipes, metal meshes, and ultra-thin frames. 【For sites with such concerns】 - Sites that want to perform small-lot, diverse metal processing without incurring costs or delays in press mold production. - Processes that feel constrained by waste liquid treatment issues in etching processing, as well as plate thickness accuracy and edge shape. - Lines that want to cut copper, brass, and stainless steel foils with a thickness of around 0.01mm (10 microns) cleanly and without burrs. We cover a wide range from spring materials and etching alternatives to processing of dissimilar metal sheets. Since it can be introduced in a space-saving manner, it can also be deployed in sites struggling with installation space within existing factories.
catalog（1）
Download All Catalogs
Company information
Lantechnology Co., Ltd. is a company that provides maintenance, installation, and repair services for laser processing machines and related equipment. Our experienced staff supports your machinery, and thanks to our unique system management, we can respond quickly even in emergencies. We are available to visit anywhere in the country, so please feel free to contact us.
