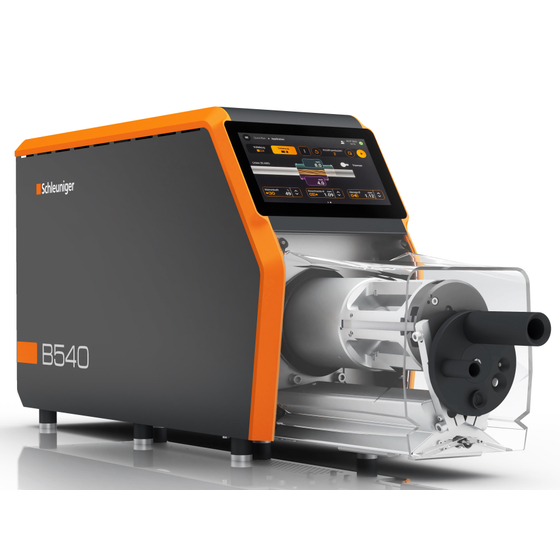

The programmable stripping device 'B540' is ideal for processing coaxial cables, multi-core cables, and single-core cables. It can handle simple twisted pair cables and multi-core cables with a cross-sectional area of 0.75 to 85 mm² (18 to 0 AWG) and a diameter of up to 17 mm. 【Features】 ■ Strip length of less than 100 mm and raw material diameter of less than 17 mm ■ Clear high-resolution 7-inch color touchscreen ■ Fast and intuitive operation with the S.Drive B Series software, including new support features ■ Rotary cutting mechanism with four blades for precise stripping ■ High-sensitivity trigger mechanism ■ No blade replacement required for all cables that can be processed ■ No mechanical adjustments needed when changing cables ■ Automatic cable feed ■ Diameter detection and cable end detection ■ Processing parameters compliant with mm² units and AWG standards ■ Continuous processing of multi-core cables with programmable sequences for stripping the sheath and internal conductors ■ Barcode scanner functionality
Inquire About This Product
basic information
【Specifications】 ■Wire outer diameter: 1.5~17mm ■Strip length: 0.1~100mm ■Strip length setting unit: 0.1mm ■Pull length: 0.1~103mm ■Insulation material: PUR, rubber, Teflon, Tefzel, Kapton, etc. ■Blades: 4 rotating blades, vertical ■Cutting diameter setting unit: 0.01mm ■Wire conductor cross-sectional area: 0.75~85mm² ■Power supply: AC 100~240V 50/60Hz ■Weight: 25.7kg ■Machine dimensions: 872×192×357mm
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
