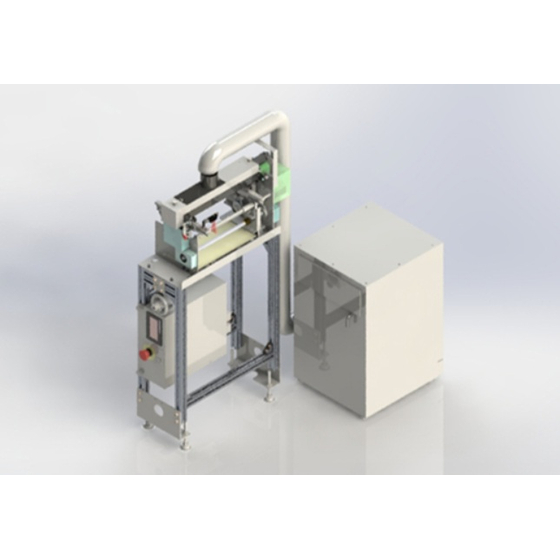

Automatic height adjustment smoothly removes dust and dirt with brushes and vacuum.
■ "Foreign Object Removal" and "Adjustment-Free" - By combining brushes and vacuum, dust and debris on the surface of the circuit board are effectively removed. Additionally, there is no need for prior thickness adjustment even if the thickness of the transported circuit boards changes, reducing the hassle of setup changes. ■ "Flexible Specification Changes" and "Self-Supporting Design" - As an option, it is possible to add a "brush contact detection function" that visualizes whether the brush is making proper contact with the circuit board, as well as support for "automatic setup changes" during product switching. The equipment itself is designed for self-installation, allowing for smooth integration and placement into existing lines.
Inquire About This Product
basic information
【Features】 - Removes dust and debris with a brush and vacuum - Can be self-standing - No need for substrate thickness adjustment - Brush contact detection function (optional) - Visualizes the presence or absence of brush contact with the substrate - Capable of automatic stage change Substrate transport direction: Right → Left (Left → Right) Substrate transport reference: Front side (Back side) Substrate transport height: 900±25 (mm) Compatible substrate dimensions: M size: W50–250mm * L50–330mm XL size: W50–460mm * L50–510mm Substrate thickness: 0.5–2.0mm Power supply: AC100V±10V (50/60Hz) Air: 0.5MPa (when ionizer is present) *XL size is also supported *Please note that specifications and appearance may change without notice for improvement purposes.
Price range
Delivery Time
Applications/Examples of results
Used in various production lines such as implementation lines. There are many achievements with EMS (Electronic Manufacturing Services) companies and the production departments of various equipment manufacturers.
Detailed information
-
Blueprint
Company information
At Komatsu Electronics Co., Ltd., the FA Division designs and develops various FA equipment by leveraging the operations and improvements at our own factory, along with a thorough accumulation of rationalization. We propose and provide appropriate systems tailored to our customers' needs. With a consistent system in place, we also support after-sales follow-up and modifications for process changes after delivery. Products shaped by the voices from the manufacturing site have received high praise.
