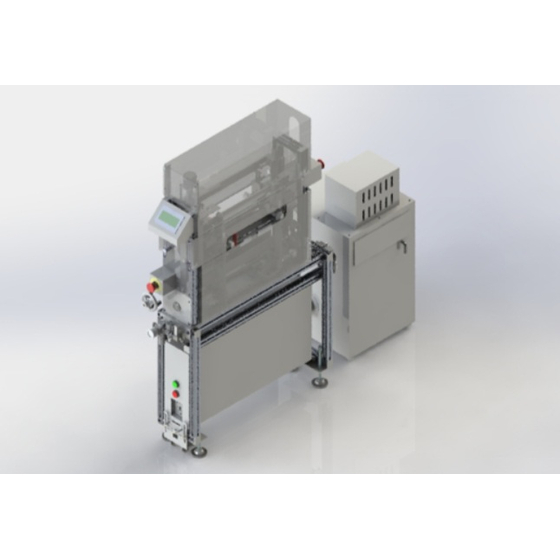

Cleaning both sides of the substrate simultaneously in a single pass.
■ "Simultaneous Dual-Sided" and "Reliable Foreign Object Removal" - Simultaneous brush removal of dust and debris from both sides: Brushes positioned on the top and bottom of the circuit board sweep away foreign objects from both surfaces at the same time. This eliminates the need for the time-consuming process of cleaning one side at a time, ensuring a clean environment while maintaining the line's takt time. - Self-standing design that fits into existing lines: The device's compact self-standing design allows it to be integrated directly into the small gaps between upstream and downstream processes. This enhances foreign object countermeasures without the need for extensive layout changes.
Inquire About This Product
basic information
【Features】 - Removes dust and dirt with a brush - Can be self-standing - Capable of cleaning both sides of the circuit board simultaneously - Supports automatic stage changes Circuit board transport direction: Right → Left (Left → Right) Circuit board transport reference: Front side (Back side) Circuit board transport height: 900±25 (mm) Compatible circuit board dimensions: W50–250mm * L50–330mm Circuit board thickness: 0.5–2.0mm Power supply: AC100V±10V (50/60Hz) Air: 0.5MPa (when ionizer is present) *Please note that specifications and appearance may change without notice for improvement purposes.
Price range
Delivery Time
Applications/Examples of results
Used in various production lines such as implementation lines. There are many achievements with EMS (Electronic Manufacturing Services) companies and the production departments of various equipment manufacturers.
Detailed information
-
Drawing
Company information
At Komatsu Electronics Co., Ltd., the FA Division designs and develops various FA equipment by leveraging the operations and improvements at our own factory, along with a thorough accumulation of rationalization. We propose and provide appropriate systems tailored to our customers' needs. With a consistent system in place, we also support after-sales follow-up and modifications for process changes after delivery. Products shaped by the voices from the manufacturing site have received high praise.
