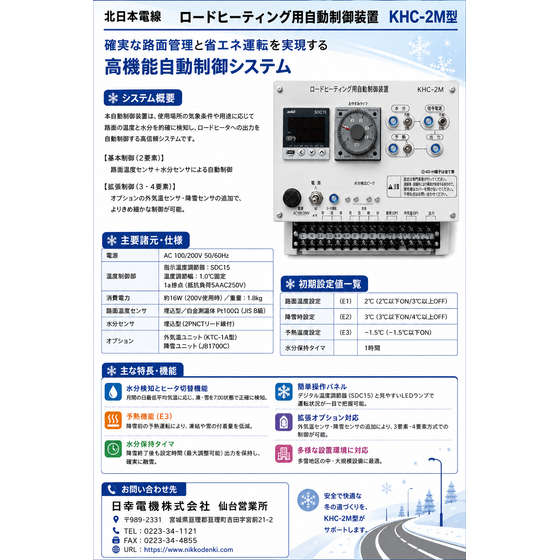

A high-performance automatic control system that achieves reliable road surface management and energy-saving driving.
This automatic control device is a highly reliable system that accurately detects road surface temperature and moisture according to the weather conditions and usage at the location, and automatically controls the output to the road heater. 【Basic Control (2 Elements)】 Automatic control using road surface temperature sensor + moisture sensor 【Extended Control (3-4 Elements)】 More detailed control is possible by adding optional outdoor temperature sensor and snowfall sensor.
Inquire About This Product
basic information
Power Supply: AC 100 / 200V 50 / 60Hz Temperature Control Unit: Temperature Adjustment Range: Fixed at 1.0℃ Power Consumption / Weight: Approximately 16W (when using 200V) / Weight: 1.8kg Surface Temperature Sensor: Embedded type / Platinum temperature sensor Pt100Ω (JIS Class B) Moisture Sensor: Embedded type (with 2PNCT lead wire) Options: Outdoor Temperature Unit (KTC-1A type), Snowfall Unit (JB1700C)
Price range
Delivery Time
Applications/Examples of results
Prevention of freezing and slipping accidents at the entrances, approaches, and parking lots of apartments and buildings; snow measures for wheelchair ramps and pedestrian bridges in commercial and public facilities; ensuring safety for various pathways and exterior structures on steep slopes and in cold regions, along with energy-saving automatic running that minimizes unnecessary power consumption.
