Data Center Equipment Monitoring: Modbus RTU Compatible AC Current Sensor

Integrating AC current data with PLC, BMS, and SCADA. We support IoT monitoring utilizing the existing Modbus infrastructure.

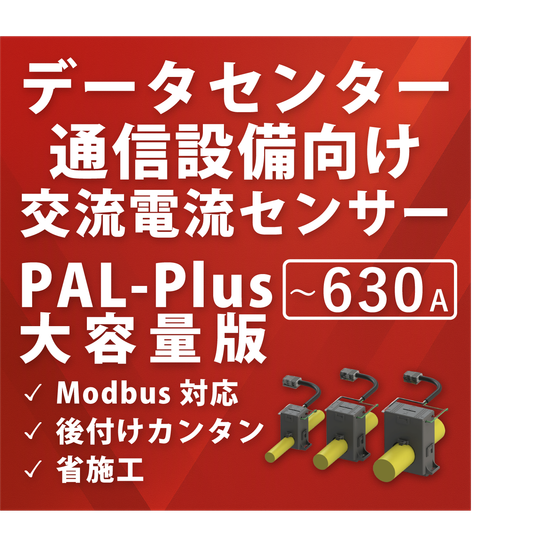

To connect the current data from equipment to IoT applications and remote monitoring, it is necessary to confirm not only the measurement performance but also the communication method and the connection configuration with higher-level devices. The PAL-Plus large-capacity version is a sensor with built-in communication functionality that measures alternating current and outputs it via Modbus RTU (RS-485). By combining it with Modbus-compatible PLCs, BMS, SCADA, and IoT gateways, you can consider equipment monitoring that leverages existing infrastructure. Being an integrated measurement and communication unit helps keep the configuration clear and contributes to space-saving within the panel. [Challenges] Want to incorporate current data into higher-level systems / Want to organize communication and connection conditions / Want to simplify the device configuration for IoT monitoring [Expected Effects] Output current values to Modbus-compatible devices / Design monitoring configurations with PLCs, IoT gateways, and PAL-Plus units / Collaborate from data collection to visualization according to application needs The materials include examples of various system constructions, power and wiring conditions, and key specifications of the sensor and PAL-Plus unit. They can be used to clarify connections with higher-level devices. By organizing circuit conditions, power, wiring, communication specifications, and role distribution with higher-level devices in advance, it helps in comparing IoT monitoring configurations that utilize existing systems and in considering connections before implementation.
