Gas spring type that locks at the bottom dead center, ideal for hot stamping.

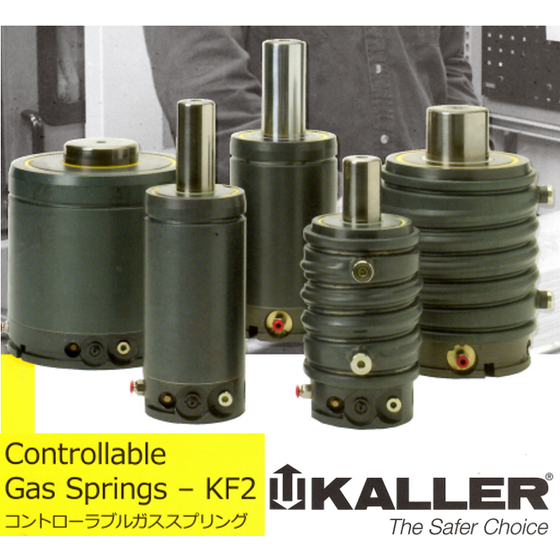

The controllable gas spring (KF2) is a member of the gas spring family used in press molds and is a type of spring that can lock the piston rod at the bottom dead center (BDC). It has traditionally been used in the drawing process of standard press molds, but recently, due to the belief that its functionality is particularly suitable for hot stamping, the demand for it in hot stamping has been increasing. The return stroke of the piston rod is controlled via a valve installed at the bottom of the spring. We offer two types: "Standard Lock, KF2" and "Positive Lock System, KF2+KP." 【Features】 <Standard Lock, KF2> ■ The piston rod can lock at the bottom dead center. ■ Maximum spring back of 1mm (Standard Lock). ■ The nitrogen gas inside the spring is completely separated into upper and lower chambers, allowing for locking. ■ Can be used both as a standalone unit and in piping. *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Features】 - Locks at the bottom dead center to control movement during opening and closing, preventing product deformation - Can maintain the state until the press reaches the top dead center - Effective when moving the product to the next station - Stroke can be selected in 1mm increments from 10mm to 160mm 【Our Strengths】 We are headquartered in Sweden and engage in the manufacturing and sales of gas spring products. We provide high-quality products based on years of experience and trust, serving customers in various industries around the world. We are also committed to research and development, continuously developing a rich lineup of products with a focus on customer safety.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Our company is headquartered in Sweden and is engaged in the manufacturing and sales of gas springs and other products. With years of proven experience, we are trusted for our high-quality products that prioritize safety, used by automobile manufacturers and various other industries around the world. We also allocate significant budgets and personnel to research and development, offering a more extensive lineup than anywhere else. We prioritize our customers' safety and will continue to improve existing products and develop new ones.
