High-speed FFT oscilloscope for real-time identification of sudden unwanted radiation sources.
For those struggling with intermittently occurring noise issues! Achieve a reduction in countermeasure time by tracking noise sources with ultra-fast FFT analysis over 45,000 times per second.

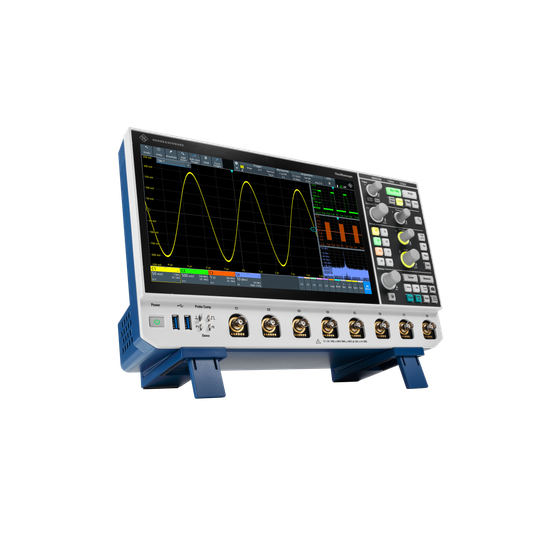

Do you have any of these concerns? - Unable to capture sporadic unwanted radiation (EMI) due to slow drawing and low reproducibility with a spectrum analyzer. - The timing of waveform fluctuations in the time domain does not match the occurrence of noise peaks in the frequency domain, making it difficult to identify the cause. - After bringing it to the EMC test site, it became clear that there were insufficient countermeasures, leading to increased re-measurement costs and time. The oscilloscope 'R&S MXO 5' fundamentally resolves these issues. ◇ Ultra-fast FFT analysis function with over 45,000 times per second Eliminates the slowness of FFT with conventional measuring instruments. With overwhelming processing speed, it captures peaks of intermittent and transient unwanted radiation noise without missing them. ◇ Real-time simultaneous tracking of time domain and frequency domain Displays time domain waveforms and FFT spectra at exactly the same timing. You can easily identify which signal line's switching or distortion is the source of the noise at a glance. ◇ Separation of minor noise due to extensive dynamic range With excellent vertical resolution and low noise floor, it allows for clear separation and observation of minor harmonic noise and leaking electromagnetic fields lurking near the main signal. A live demo showcasing the clear performance differences compared to conventional models is currently available on our website.
Inquire About This Product
Related Videos
basic information
【Main Features】 ■ Performs 45,000 FFTs per second, capable of simultaneous analysis of up to 4 spectra ■ Equipped with 500M points of standard memory in parallel for each channel ■ Features a 15.6-inch full HD capacitive touchscreen ■ Available in 8-channel and 4-channel models ■ Bandwidth: 8 channels: 100MHz to 2GHz, 4 channels: 350MHz to 2GHz 【Other Features】 ■ Achieves low noise with a minimum vertical sensitivity of 500μV/div ■ Captures up to 99% of waveforms with a trigger rearming time of less than 21ns ■ Up to 1 million waveform segments available *For more details, please refer to the documentation. Feel free to contact us with any inquiries.
Price range
Delivery Time
Applications/Examples of results
【Troublesome Processes and Issues】 - Processes troubled by conduction and radiation noise investigations: Identification of sources of sudden unwanted radiation (EMI) generated from switching power supplies and motor drive circuits on the substrate. - Sites wanting to complete EMC debugging in-house: Pinpoint exploration lines for noise radiation areas around substrate patterns and ICs using near-field probes. - Processes troubled by multi-domain analysis: Real-time correlation analysis of the rise timing of control signals and the frequency noise generated in sync with it. 【Target Audience】 Target industries: Power electronics, automotive, home appliances and consumer electronics, industrial equipment, medical electronic devices. Target processes: Circuit design, EMC countermeasures and debugging, pre-compliance verification, quality assurance. Target materials and signals: Near-field magnetic/electric noise waveforms, switching waveforms, harmonic noise, conducted noise signals. *For more details, please refer to the materials. Feel free to contact us with any inquiries.
