Multi-channel oscilloscope for long-time synchronized capture of in-vehicle LAN and power supply.
For those struggling with long-term verification of in-vehicle circuits and debugging with actual power supplies! Achieve efficient evaluation by capturing issues with multi-channel simultaneous synchronization and large-capacity memory.

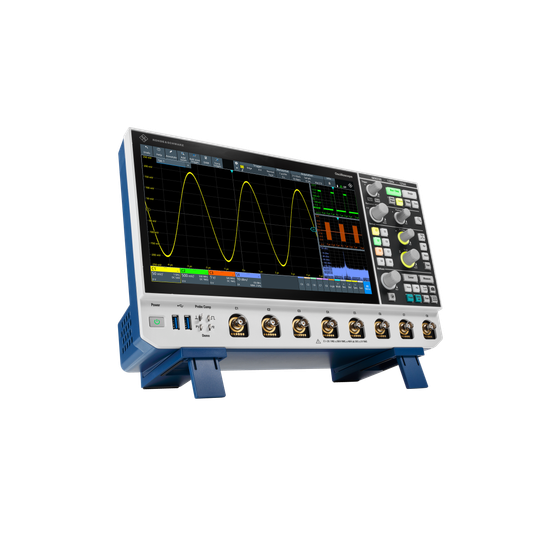

Do you have any of these concerns? - When measuring the power-up timing of BMS or onboard chargers, there aren't enough channels, leading to repeated measurements. - Unable to debug the communication waveforms of CAN FD or automotive Ethernet and the transient behavior of the actual power supply simultaneously. - During long evaluation tests, the sampling rate drops, causing transient abnormal waveforms to be overlooked. The oscilloscope 'R&S MXO 5' fundamentally resolves these issues. ◇ Synchronous verification of power sequences with up to 8 channels measured simultaneously Collect multiple signal lines from battery management systems and OBCs with a single device. Accurately verify the timing discrepancies of multi-system startups and shutdowns. ◇ Multi-channel simultaneous debugging of communication waveforms and power behavior Simultaneously display bus signals from CAN, CAN FD, LIN, and various automotive Ethernet alongside the behavior of the power lines. Instantly identify the impact of power noise when communication errors occur. ◇ High-speed sampling maintenance with 500M points memory across all channels Maintain high-resolution sampling even during long tests. Analyze while retaining detailed waveform data. A live demo showcasing the clear performance differences from conventional models is currently available on our website.
Inquire About This Product
Related Videos
basic information
【Main Features】 - Performs FFT at 45,000 times per second, capable of simultaneous analysis of up to 4 spectra - Equipped with standard memory of 500M points in parallel for each channel - Features a 15.6-inch full HD capacitive touchscreen - Available in 8-channel and 4-channel models - Bandwidth: 8 channels: 100MHz to 2GHz, 4 channels: 350MHz to 2GHz 【Other Features】 - Achieves low noise with a minimum vertical sensitivity of 500μV/div - Captures up to 99% of waveforms with a trigger rearming time of less than 21ns - Supports up to 1 million waveform segments *For more details, please refer to the materials. Feel free to contact us as well.
Price range
Delivery Time
Applications/Examples of results
【Troublesome Processes and Issues】 - Processes troubled in BMS and OBC development: Synchronization verification line for the startup and shutdown sequence of multi-system power supplies (power-on order) at millisecond and microsecond levels. - Processes troubled in in-vehicle network debugging: Evaluation process to identify the correlation between the physical waveforms of communication line frames and the variations in power and ground of the drive system. - Field where efficiency is desired in EV powertrain evaluation: Bulk recording and analysis process of complex control signals between motor control ECU and inverter. 【Target Audience】 Target industries: Automotive (OEMs, Tier 1/Tier 2 suppliers), EV-related equipment, in-vehicle ECU development. Target processes: Circuit design, in-vehicle network debugging, system integration evaluation, quality assurance. Target materials/signals: CAN / CAN FD / LIN / in-vehicle Ethernet waveforms, BMS control signals, power lines, gate drive waveforms. *For more details, please refer to the materials. Feel free to contact us with any inquiries.
