High-strength steel plate WEL-TEN for the structural parts of construction machinery attachments.
WEL-TEN Series, Nippon Steel Brand
Clamp, pull, break. For the high-strength enhancement of arms and frames that bear large loads.

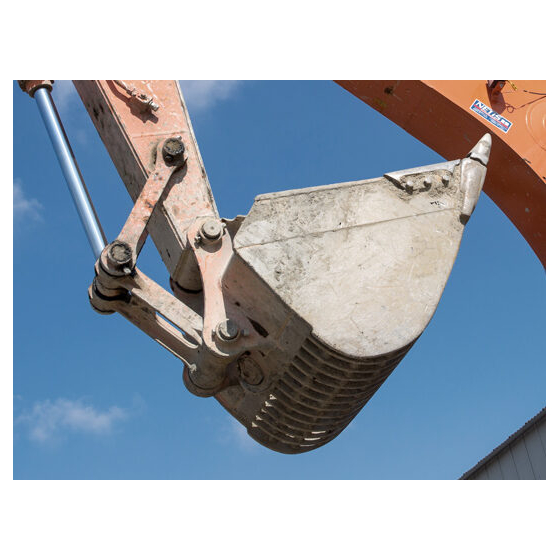

Grapples, forks, crushers, and demolition attachments repeatedly perform actions such as clamping, pulling, bending, and breaking objects. Structural components like arms, frames, and brackets require strength and toughness to withstand large loads. For components where you want to maintain structural strength while minimizing weight increase, we recommend high-tensile steel plate "WEL-TEN." WEL-TEN is a steel plate suitable for enhancing the strength and reducing the weight of welded structural components subjected to tensile and bending loads. It is used in arms, side plates, frames, and mounting parts, and it is important to select materials according to the cause of damage, such as combining wear-resistant steel plate ABREX in areas that come into direct contact with cutting edges or objects. At Kumagai Special Steel, you can consistently consult us from cutting to machining, bending, and welding, even for drawings that include composite materials.
Inquire About This Product
Related Videos
basic information
- I want to increase the strength of the arms and frame while keeping the weight down. - I want to entrust complex cutting, drilling, bending, and welding fabrication. - I want to consider structural strength and wear resistance at the tip in an appropriate manner. We handle various grades. We will select based on load conditions, welding structures, bending shapes, and operating temperatures. We can also propose ABREX for areas with severe sliding wear. 1. Main specifications and characteristics - Steel classification: High-strength steel plate (for welded structures) - Representative grades: WEL-TEN540/590/780 - Tensile strength: 540 to 780 N/mm² class - Yield point: High, strong against plastic deformation 2. Features of processing and construction - Excellent weldability, capable of controlling preheating conditions - Compatible with gas, laser, and plasma cutting - Capable of bending and drilling processing 3. Key points in performance - Reduction in plate thickness and weight due to high strength - Excellent toughness, resistant to cracking - High durability and excellent structural reliability 4. Specifications for Kumagai Special Steel cutting processing - Laser cutting is possible for WEL-TEN590 up to a thickness of 40 mm - Dimensional tolerance is ±1.0 mm (relaxation may be requested depending on product shape) - By cutting accurately, it contributes to reducing subsequent processing man-hours.
Price range
Delivery Time
P3
※Kumagai Special Steel has the largest inventory of WEL-TEN steel and is set up for immediate delivery, including cutting and processing, so it typically takes about a week depending on the lot. For special specifications or large lots, it may take longer. Please contact us by email or phone for inquiries!!
Applications/Examples of results
WEL-TEN steel is a high-tensile steel plate that combines high strength and weldability, and it has a proven track record across a wide range of industrial fields. Its ability to achieve weight reduction while ensuring structural safety is highly regarded. 1. Main Applications and Practical Examples - Construction Machinery: Boom, Arm, Frame Components - Industrial Machinery: Stands, Support Structures, Enclosures - Architecture and Civil Engineering: Steel Frames, Bridge Components, Seismic Reinforcement Materials - Energy-related: Tanks, Support Structures - Transportation Equipment: Special Vehicles, Trailer Structural Components 2. Evaluation Points in Practical Use - Weight reduction and improved fuel efficiency through thickness reduction - Increased longevity and reduced maintenance due to high strength - Suitable for welded structures, capable of mass production and large-scale structures 3. Expected Future Market Fields - Decarbonization-related products (CO₂ reduction through weight reduction) - Renewable energy facilities (stands and support structures) - Structural materials for disaster prevention and infrastructure renewal - BtoC products requiring high durability and long lifespan WEL-TEN steel is expected to see further adoption in fields where both environmental impact reduction and structural reliability are required.
Line up（3）
| Model number | overview |
|---|---|
| WEL-TEN540RE, WEL-TEN540 (55 kg steel, equivalent to SM520) | WEL-TEN540 is a high-tensile steel plate made by Nippon Steel, with a tensile strength of 540 N/mm², allowing for lightweight structures while maintaining high safety. Compared to JIS SS400, it has significantly higher strength, enabling thickness reduction and improved load-bearing capacity. Additionally, it is positioned in a strength range equal to or greater than SM520, while offering excellent weldability and workability, making it suitable for a wide range of applications such as bridges, buildings, and industrial machinery. |
| WEL-TEN590RE, WEL-TEN590 (60 kg steel, equivalent to SM570) | WEL-TEN590 is a high-tensile steel plate made by Nippon Steel, featuring a high strength of 590 N/mm², which enables further weight reduction and high reliability of structural components. Compared to JIS SS400, the strength difference is significant, contributing to thinner components and increased design flexibility. Additionally, while positioned in a strength range that exceeds SM520, it also takes into account weldability and workability, making it widely used in fields that require high strength, such as construction, bridges, and construction machinery. |
| WEL-TEN780 (an ultra-high strength steel with toughness, weldability, and workability, which is difficult to find equivalent products within JIS standards, weighing 80 kilograms) | WEL-TEN780 is a high-strength steel plate made by Nippon Steel, featuring an extremely high tensile strength of 780 N/mm², which enables significant weight reduction and enhanced durability of structural components. Compared to JIS SS400 and SM520, it offers overwhelmingly higher strength, contributing to a reduction in the number of components and an extended lifespan. It is compatible with advanced welding and processing technologies and is used in fields that require exceptionally high strength, such as construction machinery, cranes, and industrial machinery. |
