High-strength steel plate WEL-TEN for plant equipment liners and chutes.
WEL-TEN Series, Nippon Steel Brand
To high-strength materials that can withstand deformation and load. We also suggest differentiating between ABREX depending on wear conditions.

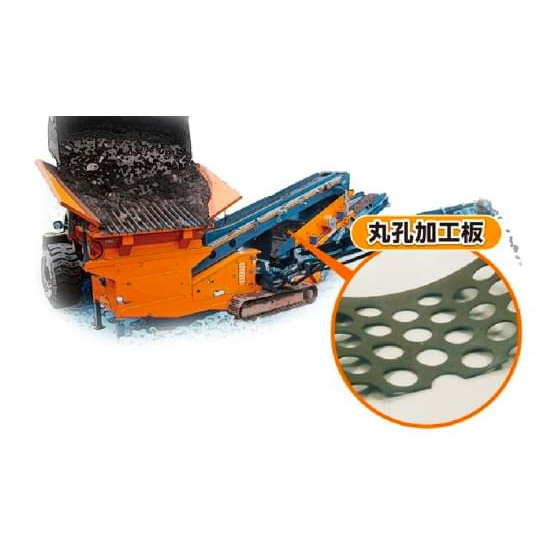

In plant equipment that performs crushing, sorting, and transportation, loads, vibrations, and impacts are applied to screens, liners, chutes, hoppers, and other components. For areas where deformation and insufficient strength are issues with ordinary steel, or for structural components where it is desirable to reduce plate thickness and equipment weight, we recommend high-tensile steel plate "WEL-TEN." WEL-TEN features high tensile strength, toughness, and good weldability, making it suitable for high-strength structural components in industrial machinery and plant equipment. It is an effective option when the main objectives are to address loads and deformation, as well as to achieve thin-walling and weight reduction. On the other hand, if severe wear due to sliding against crushed stone or scrap is the primary concern, wear-resistant steel plate ABREX may be more appropriate. We will assess the materials used, impacts, and wear conditions, and select materials for each specific area.
Inquire About This Product
Related Videos
basic information
- I want to improve the deformation and strength deficiencies of components subjected to loads and vibrations. - I want to review the plate thickness and weight while ensuring the strength of the equipment. - I would like to consult on whether to prioritize structural strength or wear resistance. We handle various grades. We support cutting, drilling, bending, machining, and welding fabrication. Please consult us regarding processing and welding conditions for plates thicker than WEL-TEN590. 1. Main specifications and characteristics - Steel classification: High-strength steel plate (for welded structures) - Representative grades: WEL-TEN540/590/780 - Tensile strength: 540 to 780 N/mm² class - Yield point: High, resistant to plastic deformation 2. Features of processing and construction - Excellent weldability, capable of suppressing preheating conditions - Compatible with gas, laser, and plasma cutting - Capable of bending and drilling processing - Usable under processing conditions similar to ordinary steel 3. Key points in performance - Reduction in plate thickness and weight due to high strength - Excellent toughness, resistant to cracking - High durability and excellent structural reliability 4. Specifications for Kumagai Special Steel cutting processing - Laser cutting is possible for WEL-TEN590 plates up to 40 mm thick - Dimensional tolerance is ±1.0 mm (relaxation may be requested depending on product shape) - High-precision cutting contributes to reducing subsequent processing man-hours.
Price range
Delivery Time
P3
※Kumagai Special Steel has the largest inventory of WEL-TEN steel and is set up for immediate delivery, including cutting and processing, so it takes about a week depending on the lot. Additionally, for special specifications or large lots, it may take more time. Please contact us by email or phone for inquiries!!
Applications/Examples of results
WEL-TEN steel is a high-tensile steel plate that combines high strength and weldability, and it has a proven track record across a wide range of industrial fields. Its ability to achieve weight reduction while ensuring structural safety is highly regarded. 1. Main Applications and Practical Examples - Construction Machinery: Boom, Arm, Frame Components - Industrial Machinery: Stands, Support Structures, Enclosures - Architecture and Civil Engineering: Steel Frames, Bridge Components, Seismic Reinforcement Materials - Energy-related: Tanks, Support Structures - Transportation Equipment: Special Vehicles, Trailer Structural Components 2. Evaluation Points in Practical Use - Weight reduction and improved fuel efficiency through thickness reduction - Increased longevity and reduced maintenance due to high strength - Suitable for welded structures, capable of mass production and large structures 3. Expected Future Market Fields - Decarbonization-related products (CO₂ reduction through weight reduction) - Renewable energy facilities (stands and support structures) - Structural materials for disaster prevention and infrastructure renewal - BtoC products requiring high durability and long lifespan WEL-TEN steel is expected to see further adoption in fields where both environmental impact reduction and structural reliability are required.
Line up（3）
| Model number | overview |
|---|---|
| WEL-TEN540RE, WEL-TEN540 (55 kg steel, equivalent to SM520) | WEL-TEN540 is a high-tensile steel plate made by Nippon Steel, with a tensile strength of 540 N/mm², allowing for lightweight structures and high safety. Compared to JIS SS400, it has significantly higher strength, enabling thickness reduction and improved load capacity. It is positioned in a strength range equal to or greater than SM520, while also possessing excellent weldability and workability, making it suitable for a wide range of applications such as bridges, buildings, and industrial machinery. |
| WEL-TEN590RE, WEL-TEN590 (60 kg steel, equivalent to SM570) | WEL-TEN590 is a high-tensile steel plate made by Nippon Steel, featuring a high strength of 590 N/mm², which enables further lightweight construction and high reliability of structural components. Compared to JIS SS400, the strength difference is significant, contributing to thinner components and greater design flexibility. Additionally, while positioned in a strength range that surpasses SM520, it also takes into account weldability and workability, making it widely used in fields that require high strength, such as architecture, bridges, and construction machinery. |
| WEL-TEN780 (an ultra-high strength steel with toughness, weldability, and workability, which is difficult to find equivalent products within JIS standards, weighing 80 kilograms) | WEL-TEN780 is a high-strength steel plate manufactured by Nippon Steel, featuring an exceptionally high tensile strength of 780 N/mm², which enables significant weight reduction and enhanced durability of structural components. Compared to JIS SS400 and SM520, it offers overwhelmingly higher strength, contributing to a reduction in the number of components and an extended lifespan. It is compatible with advanced welding and processing technologies and is used in fields that require extremely high strength, such as construction machinery, cranes, and industrial machinery. |
