The pressure source is nitrogen gas! A low overall length series compatible with various standard mounts. Initial load from 7500 to 75000N, stroke length up to 250mm.

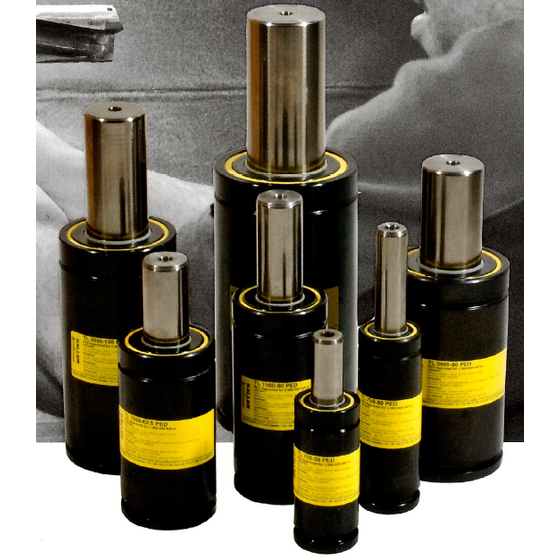

The "TL Series" is a gas spring lineup with sizes ranging from 750 to 7500. The features and technology are similar to the "TU Series." The overall length is shorter compared to the TU series, with TL750-3000 being 25mm shorter, TL5000 being 37.5mm shorter, and TL7500 being 50mm shorter. The same mounts can be used, and the stroke is the same except for 12.5, 37.5, and 62.5. 【Features】 ■ Initial load: 7500 to 75000N ■ Stroke length: up to 250mm ■ Equipped with upper C grooves, lower U grooves, and bottom taps, compatible with various standard mounts. *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Features】 - Initial load: 7500 to 75000 N - Stroke length: up to 250 mm - Equipped with upper C groove, lower U groove, and bottom tap, compatible with various standard mounts - Compared to the TU series, the TL750-3000 has a reduced overall length by 25 mm, TL5000 by 37.5 mm, and TL7500 by 50 mm - Same mount available, with the same stroke available except for some strokes 【Our Strengths】 We are a gas spring manufacturer headquartered in Sweden. Based on years of experience and trust, we provide high-quality products with a focus on safety. We concentrate on research and development to meet our customers' needs with a rich lineup. We prioritize customer safety and continue to improve and develop our products.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Our company is headquartered in Sweden and is engaged in the manufacturing and sales of gas springs and other products. With years of proven experience, we are trusted for our high-quality products that prioritize safety, used by automobile manufacturers and various other industries around the world. We also allocate significant budgets and personnel to research and development, offering a more extensive lineup than anywhere else. We prioritize our customers' safety and will continue to improve existing products and develop new ones.
