It is ideal for use as an external reference frequency generator for various electronic measuring instruments.

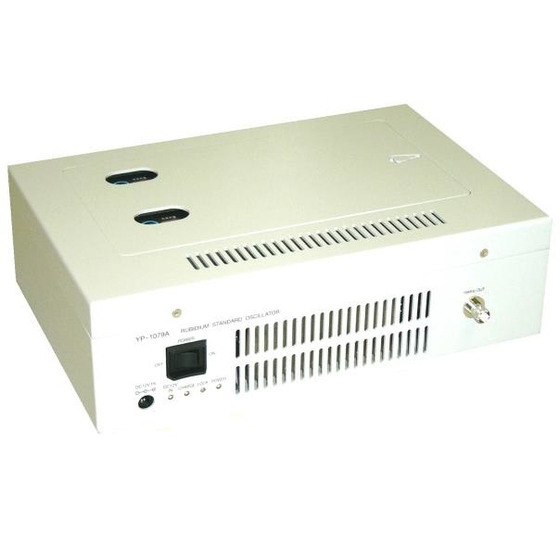

Introducing the YP-1079 series signal generator that is based on rubidium oscillation, operating at 10 MHz.
Inquire About This Product
basic information
Output frequency: 10MHz sine wave Output level: OdBm typ. (50 Ω) Short-term stability: < 5x10^-12 (100 seconds) Aging: < 5 x 10^-11 (1 month) < 1 x 10^-9 (1 year) Rise time: Approximately 6 minutes Lock indication: 7 minutes at 1 x 10^-9 Operating temperature: 0℃ ~ +40℃ (no condensation) Storage temperature: -20℃ ~ +60℃ Power supply: +15V 4.3A Output: 10MHz BNC Operating time: 3 hours continuous operation Charging time: 4 hours to 75% usable state Weight: Approximately 3.7kg Dimensions: W300mm x D200mm x H87mm (excluding protrusions) Accessories: AC adapter, calibration certificate
Price information
Please contact the sales destination. Koons Technology Co., Ltd. Electronic Devices Division 〒105-0014 3-3-10 Shiba, Minato-ku, Tokyo, Koons House TEL: 03-5427-7564
Delivery Time
Applications/Examples of results
It can be used in places without power due to the built-in battery.
