Support for the robot arm with a low-profile gas spring.

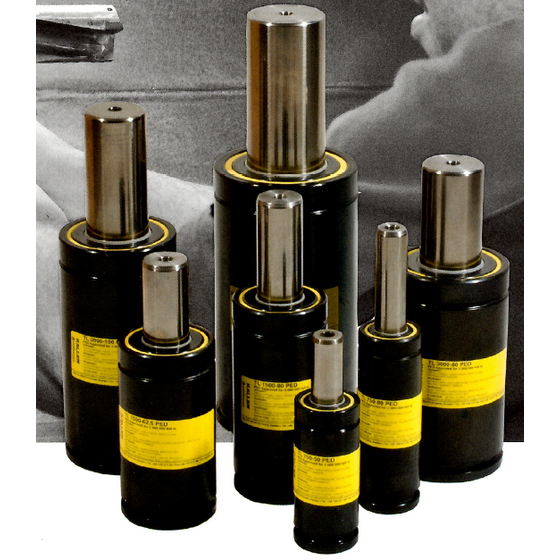

In supporting robotic arms, appropriate support force is required to sustain the weight of the arm while achieving smooth operation. Particularly, depending on the arm's range of motion and the nature of the tasks, adjusting the support force or installing it in limited spaces can pose challenges. Our gas spring "TL Series" addresses these issues by using nitrogen gas as a pressure source, providing high initial load and stroke length while maintaining a compact overall length, thereby supporting stable support and efficient operation of robotic arms. 【Application Scenarios】 - Counterbalance for industrial robotic arms - Maintaining arm posture in automated lines - Installation of robots in confined spaces 【Benefits of Implementation】 - Effectively supports the weight of the arm, achieving stable operation - Adjustable initial load allows for compatibility with various arm weights - Compact design reduces constraints on installation space
Inquire About This Product
basic information
【Features】 - Initial load: 7500 to 75000 N - Stroke length: up to 250 mm - Equipped with upper C groove, lower U groove, and bottom tap, compatible with various standard mounts - Compared to the TU series, the TL750-3000 has a reduced overall length by 25 mm, TL5000 by 37.5 mm, and TL7500 by 50 mm - Same mounts are available, providing stroke lengths equivalent to the TU series except for some strokes 【Our Strengths】 We are a gas spring manufacturer headquartered in Sweden. Based on years of experience and trust, we provide high-quality products with a focus on safety. By concentrating on research and development and offering a wide range of products, we meet the diverse needs of our customers. We prioritize customer safety and continuously improve our products and develop new ones.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Our company is headquartered in Sweden and is engaged in the manufacturing and sales of gas springs and other products. With years of proven experience, we are trusted for our high-quality products that prioritize safety, used by automobile manufacturers and various other industries around the world. We also allocate significant budgets and personnel to research and development, offering a more extensive lineup than anywhere else. We prioritize our customers' safety and will continue to improve existing products and develop new ones.
