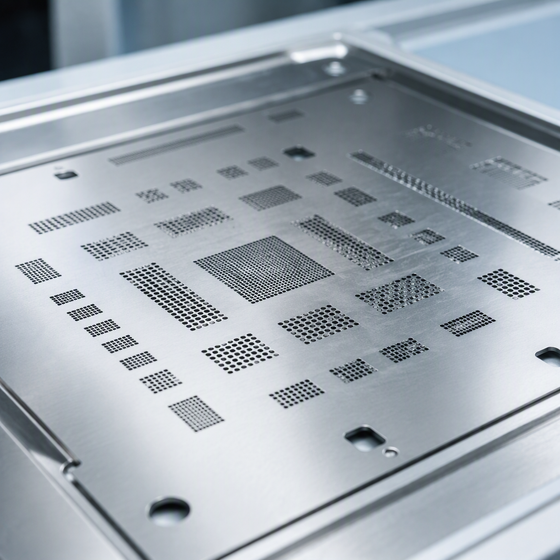

Improving solder release during solder paste printing! Metal mask cleaning agent.
Metal Mask Version Cleaning Agent HA Series
Prevents residue from cleaning agents! A metal mask cleaning agent that achieves stable printing quality.
Are the residues left after cleaning causing the next defects? Some cleaning agents that emphasize cleaning power leave sticky residues after drying. Such residues can affect the solder release properties and stencil release properties of metal masks, potentially leading to a decline in printing quality and the occurrence of defects. The HA series of metal mask cleaning agents is designed to maintain high cleaning performance while minimizing residues after cleaning, keeping the openings and the surface of the metal mask in a clean state. It ensures stable solder transfer performance and contributes to reducing printing variations and stencil release defects, supporting continuous quality improvement and yield enhancement.
Inquire About This Product
Related Videos
basic information
■Strong cleaning and dissolving power for various pastes and adhesives While designed to be neutral and not damage metal masks, it exhibits excellent cleaning performance against various solder pastes, bonding agents for component fixation, and silver pastes. ■Not subject to Fire Service Act or Organic Solvent Regulations Offers non-hazardous types and low-odor types. Contributes to improving the working environment and reducing the use of IPA (isopropyl alcohol). ■One-component process free of volatile components, with zero water usage Since the cleaning agent contains no volatile components such as surfactants, rinsing is unnecessary. It leaves no impurities on the mask after cleaning, prevents stickiness of the metal mask, and improves printing quality.
Price information
-
Price range
P2
Delivery Time
P3
※It will vary depending on the quantity.
Applications/Examples of results
■Cleaning of metal masks and mesh plates for solder paste printing ■Cleaning of mesh plates for various types of ink pastes ■Cleaning of paste syringes, dispenser nozzles, etc.
Line up（14）
| Model number | overview |
|---|---|
| HA-3090 | Type with quick-drying and high cleaning properties, ideal for hand washing. |
| HA-3399 | Low odor automatic cleaning (back wiping) for printing machines. |
| HA-1040 | Both cleaning and drying properties are excellent! It has high versatility and a strong track record of adoption. |
| HA-4900 | Low odor, good cleaning properties and plate resistance. |
| HA-1245S | The print durability is good, and both solder paste and thick film paste have good cleanability. |
| HA-1286 | Low evaporation loss, good cleanability for both solder paste and thick film paste. |
| HA-3396 | For cleaning the dispensing nozzle that dispenses adhesive for fixing parts (such as red bond). |
| HA-2789 | Low VOC, non-hazardous materials with excellent cleaning properties. *Used with SC-AH100-LV/SC-AH150. |
| HA-1285 | Among non-hazardous materials, it excels in cleanliness. Moisture management is easy. |
| HA-4040 | Low odor, reduces evaporation loss, and can lower running costs. |
| HA-4045 | Low odor, non-hazardous low VOC cleaning agent. *Used with SC-AH100-LV/SC-AH150. |
| HA-3233 | The cleaning properties of the thick film paste are good, and among non-hazardous materials, its drying properties are also good. |
| HA-3275 | Drying is slow, but the cleaning performance of the solder paste is good. |
| HA-1289 | Mainly for thick film paste cleaning. |
