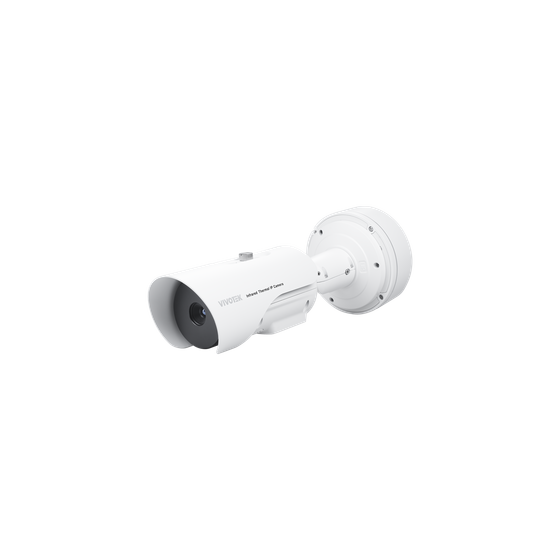

Surveillance Camera: Thermal Camera [TB9332-E (35 mm)]
Thermal camera, security camera, surveillance camera, network camera
AI-equipped, temperature measurement & alarm, video analysis (intrusion, line crossing detection)
■640x512 thermal resolution ■NETD < 40 mK @ F1.0 ■Video analysis (intrusion, line crossing) ■Object classification triggered by people/vehicles ■Temperature measurement & alarm
Inquire About This Product
basic information
■Image Sensor Uncooled VOx Microbolometer ■Max. Resolution Effective resolution: 640x512 ■Maximum Display Resolution: 1280x1024 ■Lens Type Fixed focus (thermal lens) ■Focal Length f = 35 mm ■Aperture F1.0 ■Iris Type Fixed focus ■Field of View 12° (horizontal) 10° (vertical) ■Pan/Tilt/Zoom Functionalities ePTZ: 4x digital zoom ■Storage MicroSD/SDHC/SDXC card (256GB capacity supported) ■Pixel Size 12 µm ■Spectral Range 8 ~ 14 µm ■Sensitivity NETD < 40 mK
Price range
Delivery Time
Applications/Examples of results
*Please feel free to inquire about the rental of demo units. *For more details, please refer to the PDF document or feel free to contact us.
Line up（7）
| Model number | overview |
|---|---|
| TB9333-E (3.5 mm) | https://www.vivotek.com/ja/products/network_cameras/thermal/tb9333-e_--3*5_mm-- |
| TB9332-E (9 mm) | https://www.vivotek.com/ja/products/network_cameras/thermal/tb9332-e_--9_mm-- |
| TB9332-E (15 mm) | https://www.vivotek.com/ja/products/network_cameras/thermal/tb9332-e_--15_mm-- |
| TB9332-E (50 mm) | https://www.vivotek.com/ja/products/network_cameras/thermal/tb9332-e_--50_mm-- |
| TB9333-E (7 mm) | https://www.vivotek.com/ja/products/network_cameras/thermal/tb9333-e_--7_mm-- |
| TT9333-E (3.5 mm) | https://www.vivotek.com/ja/products/network_cameras/thermal/tt9333-e_--3*5_mm-- |
| TT9333-E (7 mm) | https://www.vivotek.com/ja/products/network_cameras/thermal/tt9333-e_--7_mm-- |
catalog（1）
Download All Catalogs![Surveillance Camera: Thermal Camera [TB9332-E (35 mm)] Datasheet](https://image.mono.ipros.com/public/catalog/image/2092619/IPROS5000806811136010999.jpeg?w=120&h=170)
