Renesas RZ/G3L Slim Industrial Computer

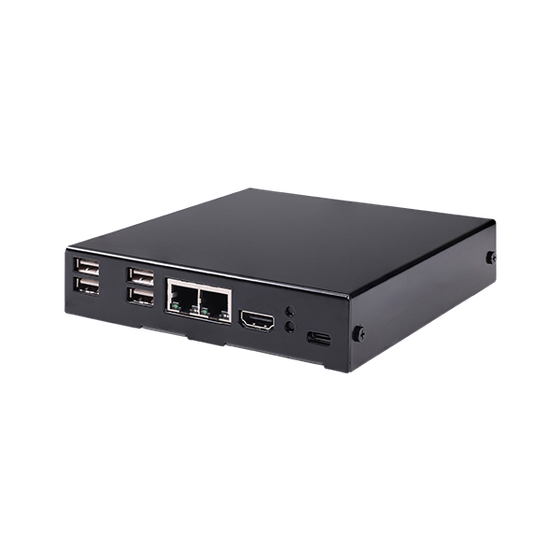

The AdiCS7102 is a compact industrial box computer based on the Renesas RZ/G3L or RZ/G3SE processor. Despite its slim form factor of only 140 x 135 x 29.5 mm, it provides a rich set of industrial interfaces including Ethernet, USB, RS-232C, RS-485, CAN-FD, and multiple display outputs. The platform is ideal for applications such as HMI systems and sensor data aggregation. The system integrates up to four Arm Cortex-A55 cores as the main processor and an Arm Cortex-M33 core as a subprocessor, enabling advanced processing tasks such as image processing while simultaneously handling real-time monitoring and control functions. For Linux-based applications, the AdiCS7102 supports the Civil Infrastructure Platform (CIP) long-term maintenance kernel, helping ensure long-term product availability and security support throughout the product lifecycle. Customization of the enclosure and I/O interfaces is also available upon request.
Inquire About This Product
basic information
<FEATURES> • Compact industrial box computer: 140 x 135 x 29.5 mm • Renesas RZ/G3L ・ 4x Arm Cortex-A55 ・ Arm Cortex-M33 ・ Mali-G31 GPU • DDR4 memory with ECC support (up to 4 GB) • HDMI (planned compliance), MIPI-DSI, and LVDS display interfaces • Raspberry Pi compatible ・ MIPI-CSI connector ・ GPIO header • 2x Gigabit Ethernet • 4x USB 2.0 • 2x RS-232C, 1x RS-485, 2x CAN-FD • M.2 Key-B or Key-E expansion slot • USB Type-C or 5 to 24 VDC power input • Linux (CIP Kernel, Ubuntu)
Price information
Feel free to contact us
Delivery Time
※Feel free to contact us
Applications/Examples of results
Feel free to contact us
catalog（3）
Download All Catalogs
News about this product（1）
Company information
TRUSTED INDUSTRIAL HARDWARE WITH OVER 40 YEARS OF EXPERTISE ============================== Since 1981, Advanet has been designing and manufacturing industrial-grade hardware, providing embedded computers and board products for sectors such as semiconductor manufacturing, medical devices, and transportation infrastructure. We deliver end-to-end solutions, from specifications and design to development, manufacturing, and quality control, tailored to each customer’s needs. Advanet’s strengths lie in advanced technical capabilities and flexible, custom support. Using these strengths, we offer a wide range of products, including servers and box-type PCs optimized for IoT and edge AI applications. Our reliable support ensures customers can build safe, high-performance systems with confidence.
