Renesas RZ/G3L SMARC Module「Adsmc7101」

Renesas RZ/G3L SMARC Module

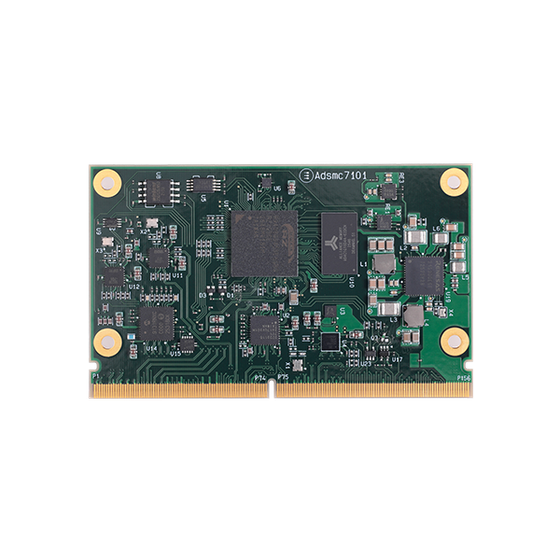

The Adsmc7101 is a compact, cost-effective SMARC System-on- Module (SoM) measuring 82 x 50 mm, based on the Renesas RZ/ G3L or RZ/G3SE processor. As the computing core is provided as a pre-validated SoM, it enables rapid integration into a wide range of embedded systems while reducing development time and risk. The module features up to four Arm Cortex-A55 cores as the main processor and an Arm Cortex-M33 core as a secondary processor. This architecture enables simultaneous execution of advanced computing tasks such as image processing and realtime monitoring and control applications. For Linux environments, the module supports the Civil Infrastructure Platform (CIP) long-term maintenance distribution, providing not only long-term product availability but also extended security support throughout the product lifecycle. Advanet also offers professional services including: ・ Firmware customization tailored to application requirements ・ Carrier board development ・ Complete system design including enclosure design Development kits combining the module with an evaluation carrier board are also available.
