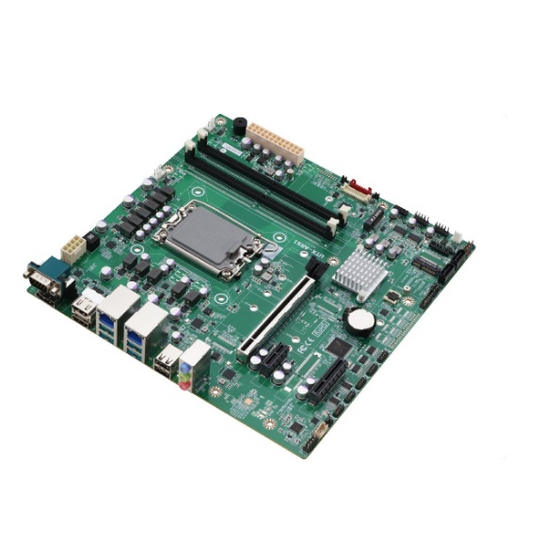

AAEON Intel Core Ultra (H810 chipset/LGA 1851) compatible industrial Micro ATX motherboard
Features: ● Intel Core Ultra (Series 2) processor LGA 1851 socket (CPU sold separately) ● DDR5 6400MT/s dual-channel support, CU/U-DIMM x2 (up to 128GB) (memory sold separately) ● M.2 M-Key x1, E-Key x1 ● USB 3.2 x4, USB 2.0 x8 ● Intel Ethernet Controller I226-V (2.5GbE) x2 ● SATA 6Gb/s x2 (supports RAID 0 / 1 / 5) ● PCI Express Gen5 x16 x1, PCI Express Gen4 x4 x1, PCI Express Gen4 x1 x1 * This model does not include memory, storage, or OS.
Inquire About This Product
basic information
【CPU Socket】Compatible with Intel Core Ultra (Series 2) processors, LGA1851 socket (CPU sold separately) 【Chipset】Intel H810 Express 【Supported Memory】DDR5-6400 CU-DIMM/U-DIMM x2 slots (maximum 128GB) (sold separately) 【Expansion Slots】PCIe Gen5 x16 x1, PCIe Gen4 x4 x1, PCIe Gen4 x1 x1, M.2 E-Key 2230 x1 【Rear I/O】HDMI 2.1 x2, DP 1.4a x1, USB 3.2 x4, USB 2.0 x2, 2.5GbE x2, RS-232/422/485 x1 【Pin Header I/O】USB 2.0 x6, RS-232 x5, 8-bit DIO x1 【Storage】SATA 6Gb/s x2 (supports RAID 0/1/5), M.2 2280 NVMe x1 (sold separately) 【Input Power】ATX power supply 【Operating Temperature】-20 to 60°C 【Supported OS】Windows 11, Linux 【Certification】CE, FCC Class A *This model does not include memory, storage, or OS.
Price range
Delivery Time
Applications/Examples of results
Applications: machine control, automation systems, environmental monitoring systems, kiosk terminals, inspection devices, digital signage, game consoles, controllers, data loggers, and many others.
Line up（1）
| Model number | overview |
|---|---|
| MAX-H810A | Intel H810,HDMI x 2,DP x 1,2.5GbE x 2,USB3.2 x 4,USB2.0 x 8,RS232 x 5,RS232/422/485 x 1,-20-60℃ |
