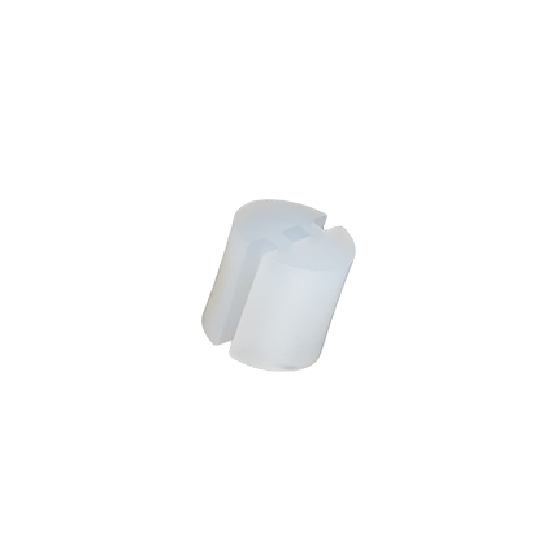

LED Mounting Spacer Round Type for 3 Legs / φ3 (Nylon, Semi-Transparent) / LDN-500MN
This product is a nylon 66 spacer designed to secure a 3-legged φ3mm LED onto a circuit board. It helps to suppress the tilt of the LED, making it easier to mount it vertically on the board. By ensuring uniform height between the circuit board and the LED, it facilitates alignment with panel holes, allowing for stable retention of the LED at the specified position and height. Additionally, by supporting the base of the LED, it helps reduce stress on the leads. It also supports aligned mounting when arranging multiple LEDs. Utilizing the electrical insulation properties of nylon 66, it aids in maintaining electrical separation and preventing shorts in high-density electronic circuit boards. This LED mounting spacer is suitable for electronic devices and display equipment that require positioning, height adjustment, and vertical mounting of 3-legged LEDs.
Inquire About This Product
basic information
■Specifications - Material: Nylon 66 - Color: Semi-transparent - Heat distortion temperature: 75°C at 1.82MPa - UL standard: UL94V-2 (material) ■Size Variation - Compatible LED: Round type for 3 legs ■EU-RoHS - Compliant with EU-RoHS2
Price information
For more details, please check our company website or catalog, or feel free to contact us.
Delivery Time
Applications/Examples of results
We offer a variety of products that can be used for various applications such as printed circuit board mounting, electronic component mounting, semiconductor mounting, relay terminal mounting, distribution board components, robot parts, industrial machinery, machine tool parts, water treatment machinery parts, FA equipment, mobile communications, mobile mobility, and base station-related components.
