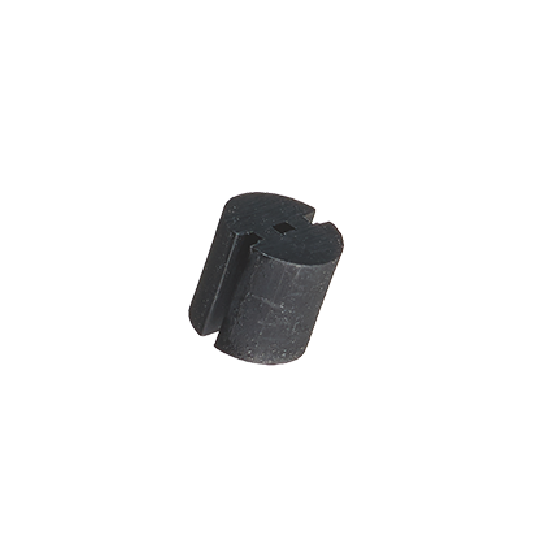

LED mounting spacer round type for 3-legged / φ3 (nylon, black) / LDN-500M
This product is a nylon 66 spacer designed to secure a 3-pin type φ3mm LED onto a circuit board. Its structure guides the three lead wires, reducing the tilt of the LED and making it easier to mount it vertically on the board. By ensuring a uniform height between the circuit board and the LED, it facilitates alignment with panel holes, allowing the LED to be stably held at the specified position and height. Additionally, by supporting the base of the LED, it helps reduce the load on the lead wires. It also supports aligned placement of multiple LEDs, ensuring consistent positioning and height during installation. Utilizing the electrical insulation properties of nylon 66, it aids in maintaining electrical separation and preventing shorts in high-density electronic circuit boards. This LED mounting spacer is suitable for electronic devices and display equipment that require precise positioning, height adjustment, and vertical mounting of 3-pin type LEDs.
Inquire About This Product
basic information
■Specifications - Material: Nylon 66 - Color: Black - Heat distortion temperature: 75°C at 1.82MPa - UL standard: UL94V-2 (material) ■Size Variation - Compatible LED: Round type for 3 legs ■EU-RoHS - Compliant with EU-RoHS2
Price information
For more details, please check our website or catalog, or feel free to contact us.
Delivery Time
Applications/Examples of results
We offer a variety of products that can be used for various applications, including printed circuit board assembly, electronic component assembly, semiconductor assembly, relay terminal assembly, distribution board components, robot parts, industrial machinery, machine tool parts, water treatment machinery parts, FA equipment, mobile communications, mobile mobility, and base station-related components.
