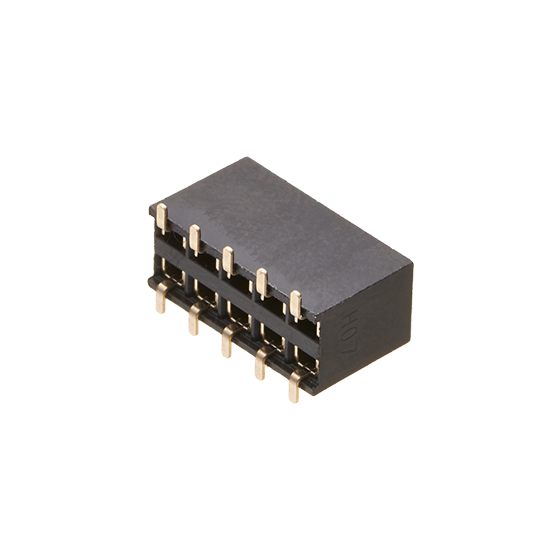

Corner pin socket SMT type 1.27mm pitch 2 rows / FSM-72
This is a high-density 1.27mm pitch, 2-row angled pin socket that allows for SMT mounting on the surface of a printed circuit board and connection of right-angle pin headers from a vertical direction. Its surface mount design compatible with automatic assembly and the ultra-small pitch 2-row structure support high-density interconnections between compact and thin devices.
Inquire About This Product
basic information
■Specifications ・Current capacity: 1A ・Insulation resistance: 5,000MΩ MIN (DC500V) ・Contact resistance: 20mΩ MAX (DC100mA) ・Operating temperature range: -40℃ to +105℃ for the main body ■Resin part ・Material: Nylon ・Color: Black ・Heat distortion temperature: 1.80MPa…290℃ ・Flammability: UL94V-0 (material) ■Contact ・Material: Phosphor bronze ・Treatment: Gold flash (nickel undercoat)
Price information
For more details, please check our website or catalog, or feel free to contact us.
Delivery Time
Applications/Examples of results
We offer a variety of products that can be used for various applications such as printed circuit board assembly, electronic component assembly, semiconductor assembly, relay terminal assembly, distribution board components, robot parts, industrial machinery, machine tool parts, water treatment machinery parts, FA equipment, mobile communications, mobile mobility, and base station-related components.
