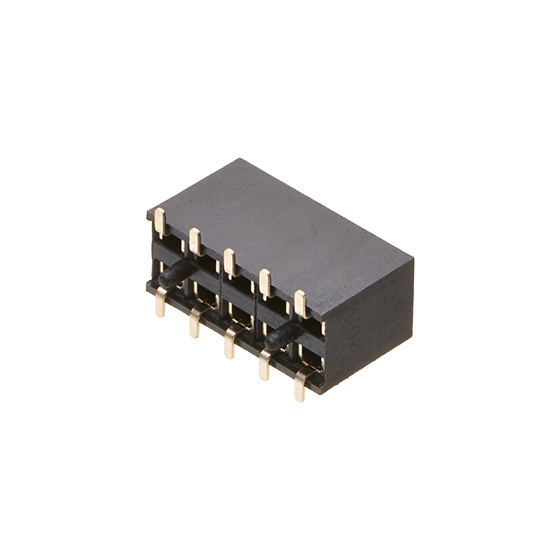

Corner pin socket SMT type 1.27mm pitch 2 rows with bottom post / FSM-72B
This is a right-angle pin socket with bottom posts designed for SMT mounting on the surface of a printed circuit board, allowing connection of a pin header from a vertical direction with a 1.27mm pitch and 2-row specification. By incorporating bottom posts for positioning, it simultaneously supports precise alignment on the board and enhances mounting strength.
Inquire About This Product
basic information
■Specifications ・Current capacity: 1A ・Insulation resistance: 5,000MΩ MIN (DC500V) ・Contact resistance: 20mΩ MAX (DC100mA) ・Operating temperature range: -40℃ to +105℃ main body ■Resin part ・Material: Nylon ・Color: Black ・Heat distortion temperature: 1.80MPa…290℃ ・Flammability: UL94V-0 (material) ■Contact ・Material: Phosphor bronze ・Treatment: Gold flash (nickel undercoat)
Price information
For more details, please check our website or catalog, or feel free to contact us.
Delivery Time
Applications/Examples of results
We offer a variety of products that can be used for various applications such as printed circuit board mounting, electronic component mounting, semiconductor mounting, relay terminal mounting, distribution board components, robot components, industrial machinery, machine tool components, water treatment machinery components, FA equipment, mobile communication, mobile mobility, and base station-related components.
