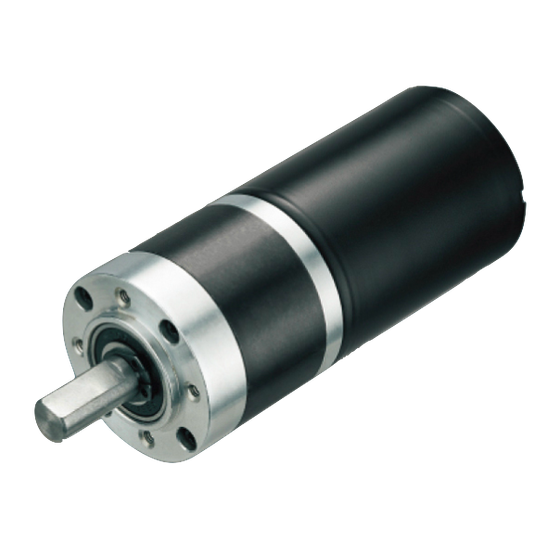

SGM Series Small Brushless Geared Motor for Logistics Warehouses
SGM series (outer diameter 24mm to 60mm)
Achieving both miniaturization of conveying equipment and cost reduction. A brushless geared motor specialized for mass production.
In the field of transport automation in logistics warehouses, efficient operation in limited space and reliability for long-term stable operation are required. Especially in the design of AGVs (Automated Guided Vehicles) and transport robots, reducing costs while decreasing maintenance frequency directly contributes to improved operational efficiency. Concerns about quality with overseas products and budget constraints with domestic products pose challenges; however, our 'SGM Series' is designed with mass production through automation equipment in mind, achieving a balance between cost performance and the long lifespan and low noise characteristics unique to brushless motors. 【Application Scenarios】 - Drive units for AGVs (unmanned transport vehicles) within logistics warehouses - Running and lifting mechanisms for automatic transport robots - Power source for space-saving automatic sorting devices 【Benefits of Implementation】 - Reduced maintenance frequency and increased lifespan due to brushless technology - Space-saving control circuits with built-in driver (ID type) - Total cost reduction for transport equipment through mass production-focused design
Inquire About This Product
Related Videos
basic information
【Features】 - Contributes to miniaturization of devices with an ultra-small size starting from an outer diameter of 24mm - Achieves low noise, long lifespan, and maintenance-free operation by adopting a brushless motor - The built-in driver type (ID type) can be driven with just a power supply and PWM signal - Wide range of gear ratios (1/3.6 to 1/1024) to accommodate various torque requirements - Long lifespan design of 2000 to 4000 hours achieved by using ball bearings 【Our Strengths】 - As a specialized company for low-voltage battery-driven motors, we select the optimal motors and drivers according to design specifications - Provide thorough support from driver control settings and operation lectures to troubleshooting after delivery - Based on our track record of implementation in transport equipment (AGV, AMR, etc.), we offer continuous support until reliable operation is achieved on-site
Price information
We have achieved an overwhelmingly low price that strongly promotes the replacement of conventional low-cost brushed motors with long-lasting brushless motors. Mass production on automated lines significantly contributes to cost reduction during mass production. Prices vary based on outer diameter size, drive method (internal/external), and gear ratio, so please request a quote for details, including prototypes and mass production lots.
Price range
P1
Delivery Time
※We provide flexible support from free samples for trial and evaluation to mass production delivery. Please consult with our sales department regarding specifications not listed in the catalog.
Applications/Examples of results
Through thorough cost reduction and compact design, it is utilized in a wide range of applications, from mass-produced consumer devices to small industrial equipment. 【Main Applications and Adoption Examples】 - Drive shafts for tabletop robots and small FA devices - Various vending machines (product dispensing, bill and coin transport mechanisms) - Amusement machines (arm drive for crane games, etc.) - Massage chairs (drive for kneading balls and reclining mechanisms) - Small pumps and transport units for photo booth machines and medical devices - Film feeding and sealing roller drives for food packaging machines and pillow packaging machines - Mini conveyors and belt drive shafts for transporting electronic components and small workpieces - Work supply sections for labelers, cardboard sealing machines, and printing printers - Small parts feeders and discharge mechanisms in various automatic assembly machines and inspection devices 【Thorough Support Unique to Our Crew】 For customers who want to use low-cost motors from overseas but are concerned about potential issues after implementation and how to use them, our company acts as a "supporting role" to run alongside the project. We provide technical support through screen sharing and, if necessary, on-site assistance until the customer is fully satisfied and able to integrate the solution.
Line up（10）
| Model number | overview |
|---|---|
| SGM30A-ED (Outer diameter 30mm / 12V・24V) | ED Series (External Driver Type) |
| SGM36A-ED (Outer diameter 36mm / 12V・24V) | ED Series (External Driver Type) |
| SGM43A-ED (Outer diameter 43mm / 12V・24V) | ED Series (External Driver Type) |
| SGM52A-ED (outer diameter 52mm / 12V・24V) | ED Series (External Driver Type) |
| SGM56A/B-ED (outer diameter 56mm / 24V) | ED Series (External Driver Type) |
| SGM60A/B-ED (Outer diameter 60mm / 24V・310V) | ED Series (External Driver Type) |
| SGM24A/B-ID (Outer diameter 24.4mm / 12V・24V) | ID series (with built-in driver) |
| SGM28A-ID (Outer diameter 28mm / 12V・24V) | ID Series (with built-in driver) |
| SGM36A-ID (Outer diameter 36mm / 12V・24V) | ID Series (Built-in Driver Type) |
| SGM42A-ID (Outer diameter 42mm / 12V・24V) | ID Series (with built-in driver) |
catalog（5）
Download All Catalogs
Company information
CLUW Inc. specializes in low-voltage battery-driven motors and control drivers, offering a comprehensive lineup from compact to high-power models. Our product range includes Brushless DC Motors, Battery-Driven AC Servo Motors, Geared Motors, In-Wheel Motors, and Cooling Fans. Beyond product supply, we deliver dedicated technical support—from driver selection and setup guidance to troubleshooting—ensuring seamless operational integration for our customers.
