Small Brushless Geared Motor for Electronic Component Manufacturing
SGM series (outer diameter 24mm to 60mm)
Achieving automation of precision transport at low cost. Compact motors with long lifespan and maintenance-free.
In the electronic components manufacturing industry, automated equipment that can transport tiny parts accurately and stably is essential. Especially in the transportation of precision parts, miniaturization of the equipment and long-term stable operation are required. Our SGM series provides an optimal power source that maintains the long lifespan and low noise performance of brushless motors while keeping costs down through mass production with automated equipment, addressing the challenges of balancing quality and cost in design environments. 【Usage Scenarios】 - Automated supply and transport lines for electronic components - Desktop precision assembly robots - Automatic sorting and picking devices for parts 【Benefits of Implementation】 - Improved line efficiency through space-saving equipment - Enhanced operational rates due to reduced maintenance frequency - Streamlined capital investment through optimized implementation costs
Inquire About This Product
Related Videos
basic information
【Features】 - Contributes to miniaturization of devices with an ultra-small size starting from an outer diameter of 24mm - Achieves long life, low noise, and maintenance-free operation through a brushless structure - Easily controllable with just a power supply and PWM signal thanks to the built-in driver (ID type) - Selectable according to application from a wide range of gear ratios (1/3.6 to 1/1024) - High cost performance designed for mass production in automation equipment 【Our Strengths】 As a specialized company in low-voltage battery-driven motors, we provide support from product selection to driver settings and troubleshooting after on-site implementation, closely assisting engineers with design challenges until reliable operation is achieved.
Price information
We have achieved an overwhelmingly low price that strongly promotes the replacement of conventional low-cost brushed motors with long-lasting brushless motors. Mass production on automated lines significantly contributes to cost reduction during mass production. Prices vary depending on the outer diameter size, drive method (built-in/external), and gear ratio, so please request a quote for details, including prototypes and mass production lots.
Price range
P1
Delivery Time
※We provide flexible support from free samples for trial and evaluation to mass production delivery. Please consult our sales department for specifications not listed in the catalog.
Applications/Examples of results
Through thorough cost reduction and compact design, it is utilized in a wide range of applications, from mass-produced consumer devices to small industrial equipment. 【Main Applications and Adoption Examples】 - Drive shafts for tabletop robots and small FA devices - Various vending machines (product dispensing, bill and coin transport mechanisms) - Amusement machines (arm drive for crane games, etc.) - Massage chairs (drive for massage balls and reclining mechanisms) - Small pumps and transport units for photo booth machines and medical devices - Film feeding and sealing roller drives for food packaging machines and pillow packaging machines - Mini conveyors and belt drive shafts for transporting electronic components and small workpieces - Work supply sections for labelers, cardboard sealing machines, and printing printers - Small parts feeders and discharge mechanisms within various automatic assembly machines and inspection devices 【Thorough Support Unique to Our Crew】 For customers who want to use low-cost motors from overseas but are concerned about potential issues after implementation or how to use them, our company acts as a "supporting role" alongside the project. We provide technical support through screen sharing and on-site assistance as needed, offering thorough support until the customer is fully satisfied with the integration.
Line up（10）
| Model number | overview |
|---|---|
| SGM30A-ED (Outer diameter 30mm / 12V・24V) | ED Series (External Driver Type) |
| SGM36A-ED (Outer diameter 36mm / 12V・24V) | ED Series (External Driver Type) |
| SGM43A-ED (outer diameter 43mm / 12V・24V) | ED Series (External Driver Type) |
| SGM52A-ED (Outer diameter 52mm / 12V・24V) | ED Series (External Driver Type) |
| SGM56A/B-ED (outer diameter 56mm / 24V) | ED Series (External Driver Type) |
| SGM60A/B-ED (Outer diameter 60mm / 24V・310V) | ED series (external driver type) |
| SGM24A/B-ID (Outer diameter 24.4mm / 12V・24V) | ID Series (with built-in driver) |
| SGM28A-ID (Outer diameter 28mm / 12V・24V) | ID Series (with built-in driver) |

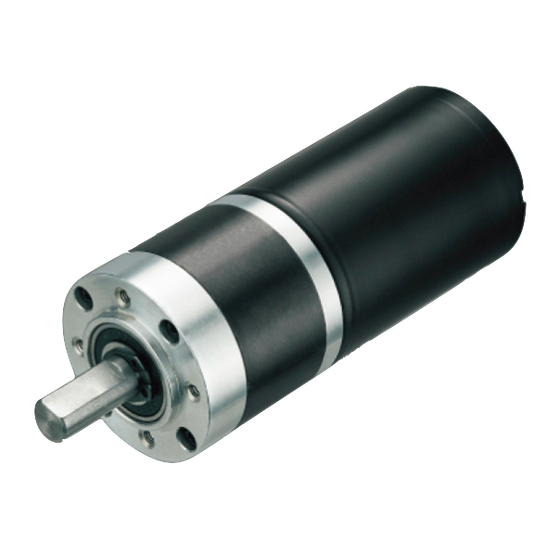

| SGM36A-ID (Outer diameter 36mm / 12V・24V) | ID Series (Driver Built-in Type) |
| SGM42A-ID (Outer diameter 42mm / 12V・24V) | ID Series (with built-in driver) |
