Six models, from the benchtop BR-150 to the production BR-680. Numerical roll-gap control in 1 µm steps takes your test conditions straight to production.
The EasyRoll BR Series is a lineup of six three-roll mills, ranging from benchtop models with φ63.5 mm rolls to production models with φ300 mm rolls. You can scale up from R&D to mass production within the same series. ■ All models: Roll gap controlled numerically in 1 µm steps The Position Repeater lets you set and manage the gap numerically. Anyone can reproduce the same quality, making it easy to transfer conditions set in the lab to production machines. ■ Fixed structure keeps the gap constant during processing Prevents the gap from widening under the load of the material being processed. ■ Safety features as standard Equipped with an emergency stop button, hand-turn handle, safety cover, and brake mechanism. ■ Precision maintained after installation Annual inspection and zero-point adjustment let you reset the reference position. We also offer on-site testing at our facility, demo unit rental, and contract processing with the benchtop BR-150HCV3.
Inquire About This Product
basic information
[Roll Speed Ratio] BR-150: 1:2.8:7.6 / BR-230 and larger: 1:3:9 [Weight] Approx. 80 kg (BR-150) to approx. 3,200 kg (BR-680) [Roll Materials] Hardened steel + hard chrome plating, chilled steel, alumina, silicon nitride, zirconia [Options] Smart Operation Pack (automatic logging of operating data, safety cover) * Throughput varies depending on the material processed. * Specifications are subject to change without notice for improvement.
Price range
Delivery Time
Applications/Examples of results
- Dispersion of thick-film pastes for screen printing - Pigments, inks, and sumi ink - Dispersion of conductive pastes - Compounding fillers into resins - Dispersion of encapsulants - Kneading of chocolate and peanut cream - Dispersion of cosmetic materials - Kneading of CNTs and CNFs Please feel free to consult us on roll materials and model selection. We also offer contract processing.
Detailed information
-
BR-150HCV3
-
BR-300HCV3
Line up（6）
| Model number | overview |
|---|---|
| BR-150HCV3 | Φ63.5mm |
| BR-230HCV3 | Φ86.5mm |
| BR-300HCV3 | Φ130.5mm |
| BR-450HCV3 | Φ200mm |
| BR-510HCV3 | Φ230mm |

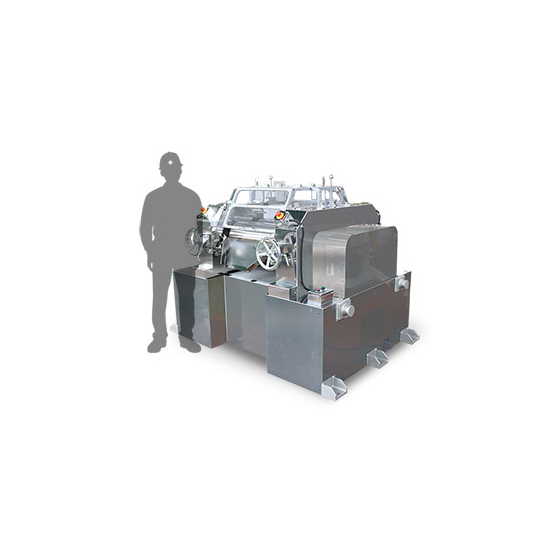

| BR-680HCV3 | Φ300mm |
Company information
1. Established in 1950, we have a proven track record of supplying numerous machines. 2. We have two main pillars: the chemical machinery business and the plastic business. 3. We are a research and development-oriented company with a strong spirit of challenge, continuously innovating together with our customers. We take joy and a sense of accomplishment in listening to our customers' needs and overcoming challenges together.
