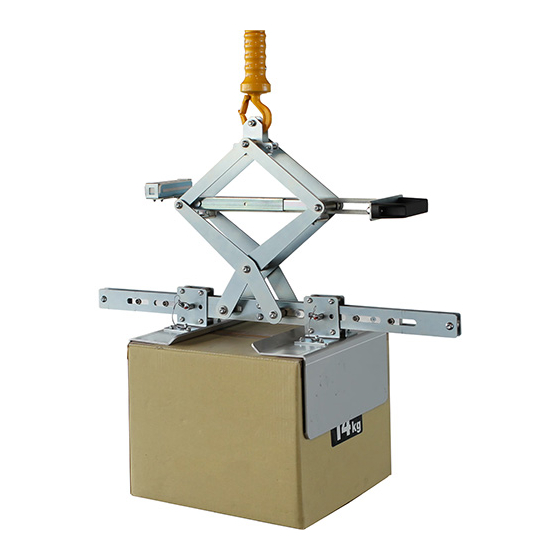

It can be adjusted in width and can accommodate various sizes.
■Recommended in this case ●I want to use it not only for cardboard but also for various box-shaped works.
Inquire About This Product
basic information
■Specifications Slide Rail Pin Hole Position Claw Bracket Pin Hole Position 1 2 3 A 285～353 327～395 369～437 B 421～489 463～531 505～573 C 557～625 599～667 641～709 Part Number Usage Load (kg) Dimensions (mm) Weight (kg) a b C D i L1 L2 W S(min) S(Max) M75LBA-001K 60 16 18 280 (Non-clamped) 450 (Clamped) 425 (Non-clamped) 600 (Clamped) 21 555 510 330 327 437 9 M75LBA-002K 645 573 9.5 M75LBA-003K 780 709 10
Price range
Delivery Time
Applications/Examples of results
● Although the sizes of the workpieces are different, we want to share one piece of fishing gear ⇒ width adjustment is possible ● We want to switch between "grabbing" and "releasing" with a single action during elevation ● We want to transport the load with both hands ⇒ equipped with a wireless remote control holder
