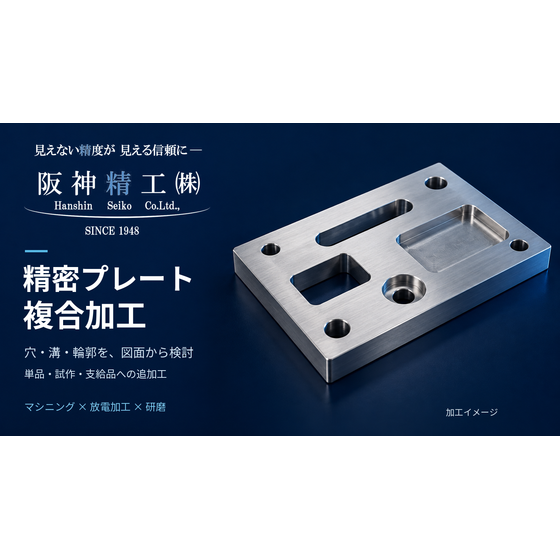

Consistent processing from holes, grooves, and contours to polishing. Supports single-piece production of precision plates, post-hardening processing, and additional work on supplied materials.
At Hanshin Seiko Co., Ltd., we accept orders for the machining of precision plates used in machinery, production equipment, jigs, and molds. We combine machining, wire cut electrical discharge machining, shape electrical discharge machining, fine hole electrical discharge machining, and grinding to provide integrated processing from finishing reference surfaces to holes, grooves, and contours. We will consider processing methods according to shapes such as positioning holes, tapped holes, counterbores, pockets, irregular holes, corner holes, and slits. We will also confirm not only the hole diameter but also the pitch between holes, the positional relationship with the outer shape, and specifications for plate thickness, flatness, and parallelism. We will consider processing standards used in multiple processes and the sequence of operations including heat treatment. In addition to single items, prototypes, and small lot production, please consult us about additional processing for plates after hardening and for supplied items. Based on drawings and CAD data, we will provide guidance on necessary processes and machining feasibility.
Inquire About This Product
basic information
■Target: Precision plates for equipment, jigs, and molds ■Machining: Round holes, tapped holes, counterbores, pockets ■Wire cutting: Through irregular holes, square holes, slits, outer shapes ■Shape electric discharge machining: Bottomed concave shapes, small radii, fine grooves ■Fine hole electric discharge machining: Small diameter holes, deep holes, wire cutting starting holes ■Flat grinding and polishing: Plate thickness, reference surfaces, finishing of flatness and parallelism ■Verification items: Material, dimensions, plate thickness, heat treatment condition, machining standards, tolerances, surface roughness *Each machining method will be selected according to shape, material, and required precision. Corresponding dimensions and precision will be confirmed individually.
Price information
We will provide individual estimates based on material, dimensions, processing shape, required precision, quantity, and process. For additional processing on supplied items, please provide the current drawings and documents that indicate the areas for additional processing.
Delivery Time
※It varies depending on the processing details, quantity, and material arrangement status. Please inquire with the availability of supplied items and your desired delivery date.
Applications/Examples of results
【Uses and Consultation Examples】 ■ Precision plates used for production equipment and dedicated machines ■ Jig plates equipped with positioning holes and mounting holes ■ Mold plates with irregular holes, square holes, and slits ■ Parts that combine surface grinding of reference surfaces with hole and contour machining ■ Hole and groove machining on plates after hardening ■ Additional processing on supplied plates due to equipment modifications ■ Production of single items, prototypes, and small lots of plates Please inform us of the surfaces and holes that can be used as processing references, as well as any finishing surfaces that require protection.
Company information
Hansei Seiko Co., Ltd. is a precision metal processing company founded in 1948, based in Kobe City, Hyogo Prefecture. We offer integrated processing services centered around wire cut electrical discharge machining, shape electrical discharge machining, and fine hole electrical discharge machining, as well as machining, polishing, finishing, and measurement. We welcome inquiries for precision parts, mold components, jigs, test pieces, and more, whether for single items, prototypes, or small lots. In addition to processing hardened steel, carbide, and stainless steel, we also handle contour machining of thick parts, key grooves, fine slits, and complex shapes. We confirm material, shape, required precision, and application, and consider processing conditions and processes. This reduces the burden of arranging multiple processing locations and supports part manufacturing. Based on the principle of "making according to the drawings," we conduct inspections and measurements in-house to confirm the finish before shipping. Based in Kobe and Hyogo, we accept processing inquiries and quotation requests from across the country. If you have parts you are struggling to process or drawings for which you would like to consider methods and processes, please feel free to consult with us. https://www.hansei.co.jp/
