The belt roller method allows for smooth processing of cables with uneven surfaces.

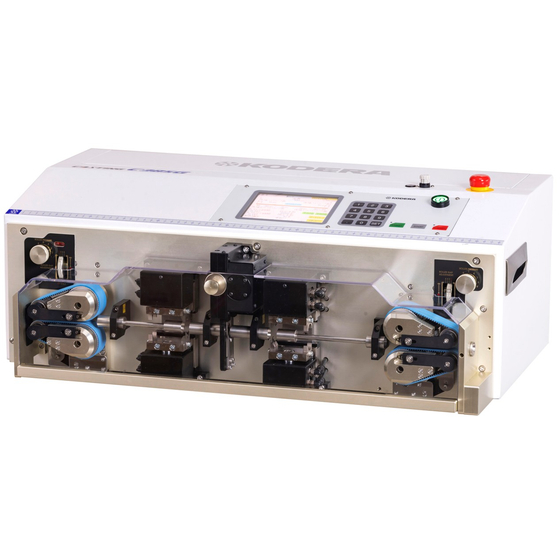

The "C385G" by Kodera Electronics is a high-performance, fully automatic cable measuring, cutting, and stripping machine that perfectly combines power and stability. By utilizing a "belt feed system" for wire feeding, it securely grips uneven surfaces—such as cabtyre cables and shielded wires, using a flat contact area, achieving stable processing while minimizing surface damage. Capable of handling a wide range of sizes from AWG#7 to 28 (up to a maximum outer diameter of 11mm), this model features next-generation circuit boards and power systems to boost both production efficiency and reliability.
Inquire About This Product
basic information
【Specifications】 ○Model: C385G ○Dimensions: Width 735mm x Depth 457mm x Height 288mm ○Weight: 49kg ○Power Supply: Single-phase AC 100V-240V, 50Hz/60Hz ○Cutting Length: 210mm to 99,999mm ○Cutting Tolerance: ±(0.1 + 0.0005 × L) mm (depending on wire type) *L is the cutting length ○Strip Length: Maximum tip length: 1,500mm, maximum rear end length: 210mm (semi-strip required) ○Compatible Wire Types: ABS wire, airbag wire, shielded wire, VSF, IV, KV, UL, Teflon, glass wire, etc. ○Compatible Wire Sizes: AWG#7(10sq)～AWG#28(0.08sq) *depending on wire type ○Compatible Wire Outer Diameter: Maximum φ12mm *depending on wire type ○Wire Feed Speed: Variable ○Blade Material: Ultra-fine particle alloy ○Manufacturer: Kodera Electronic Manufacturing Co., Ltd. ●For more details, please contact us or download the catalog.
Price information
3,060,000 yen (excluding tax)
Delivery Time
※Please contact us.
Applications/Examples of results
For more details, please refer to the catalog or contact us.
catalog（1）
Download All Catalogs
Company information
We are a company that sells and maintains wire harness processing machines. <Handled Wire Processing Equipment> Wire stripping machines, wire cutting machines, terminal crimping machines, tube cutting machines, cable cutting machines, fully automatic terminal crimping machines, fully automatic soldering machines. <Handled Wire Processing Equipment Manufacturers> KODERA (Kodera Electronic Manufacturing) , Union Machinery, Hakkou Electric, Trusoltech, Nippon Continuous Terminal, KOMAX, Schleuniger. <Sold Materials> Crimp terminals, electric wires, multi-core cables, flat cables, tubes, connectors, housings. <Material Handling Manufacturers> Yazaki, Sumitomo Electric, Tokai Rika, Furukawa Electric, Mitsubishi Electric Wire, Ryosei Electric, Nippon Terminal, TYCO, JST, Hirose Electric, JAE, Misawa Electric Wire, Sumitomo Electric Industries, Klabe.
