The weighing of virgin materials and crushed materials, as well as the mixing and stirring operations, can be simplified for unmanned operation!

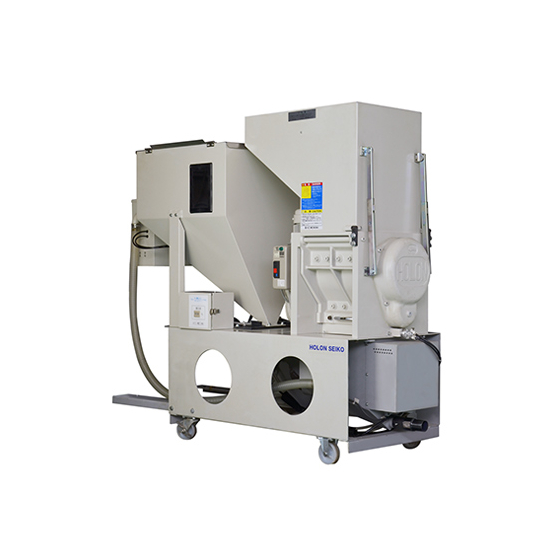

The system consists of a crusher, a virgin material tank, and a mixing tank, which continuously prepares a certain amount (approximately 5 kg) of a mixture by mixing recycled material and virgin material using a level switch. Therefore, it allows for unmanned operation simply by replenishing the virgin material. Due to its compact design, it requires a small installation area and can be placed conveniently next to the molding machine. The crusher operates with a low-speed gear motor directly connected to the rotor shaft, resulting in low noise and no scattering of crushed particles. When the covers on both sides of the crusher are opened, the coarse and fine crushing blades are fully visible, making cleaning during material changes easy. The mixing tank is pull-out type, so cleaning is similarly straightforward. Additionally, the crusher is screenless, preventing clogging. The CBR type allows for control of the mixing ratio between virgin material and crushed material. The settings are made using the timer on the control box.
Inquire About This Product
basic information
**Features** ○ Automatic Mixing → Composed of a crusher, virgin material tank, and mixing tank, mixing recycled material with virgin material → Continuously prepares a constant amount (approximately 5kg) of mixture using a level switch ○ CBR type with adjustable mixing ratio is also available ○ Can operate unmanned by simply replenishing virgin material ○ Compact Design → Requires a small installation area and can be placed conveniently next to the molding machine ○ The crusher (Compack) uses a low-speed gear motor directly connected to the rotor shaft → Operates quietly without scattering crushed particles ○ Perfect Cleaning → The mixing tank is drawer-type, making cleaning easy ○ The crusher is screenless, preventing clogging ● For more details, please contact us or download the catalog.
Price information
Please contact us.
Price range
P4
Delivery Time
※Please contact us.
Applications/Examples of results
We have a wide range of achievements with materials from general-purpose resins to engineering plastics. We also have rental machines available for evaluation, so please feel free to contact us. For more details, please contact us or download the catalog.
Detailed information
-
Structural diagram Mix the crushed material with the virgin material and feed it into the molding machine.
Line up（3）
| Model number | overview |
|---|---|
| CBA160/CBR160 | Virgin material tank capacity: 50ℓ, Total electric capacity of gear motor: 0.45kW, Runner dimensions: L ～140mm, D ～7mm |
| CBA250/CBR250 | Virgin material tank capacity: 100ℓ, Total electric capacity of gear motor: 0.8kW, Runner dimensions: L ～230mm, D ～9mm |
| CBA400 | Virgin material tank capacity: 100ℓ, Total electric capacity of gear motor: 1.55kW, Runner dimensions: L ～380mm, D ～12mm |
