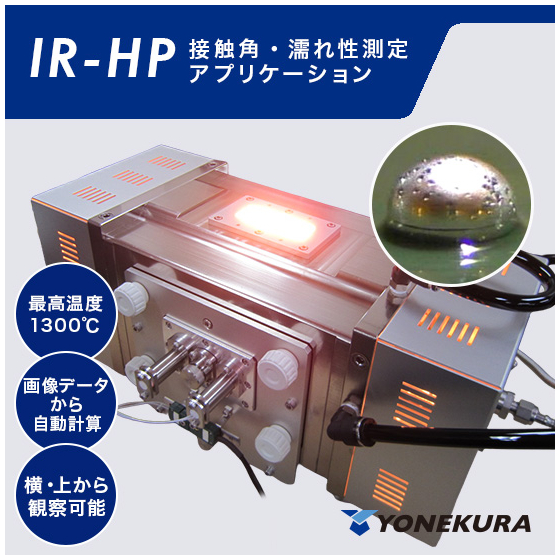

High-Temperature Observation Device 'IR-HP' / Contact Angle and Wettability Measurement Application
IR-HP
The state of the sample being heated can also be observed through the observation windows on the top and side! Automatic calculation of contact angles and wettability from image data is also possible! *Demo available now.
The "IR-HP" is a high-temperature observation device capable of heating up to 1300°C through focused heating of samples only. It comes standard with a large 100mm sample holder and features observation windows on both the top and side, allowing for the observation of the sample's state during heating from various angles. Additionally, through joint development with Nick Corporation, it has become possible to automatically calculate contact angles and wettability at high temperatures from image data! It measures the contact angle of solid substances when they become liquid at high temperatures, as well as changes in contact angles under high temperatures that differ from those at room temperature. *Free demos are currently available* (For those planning to purchase, we offer free demos for image verification.) 【Features】 ■ Capable of heating up to 1300°C through focused heating ■ Standard large 100mm sample holder ■ Observation windows installed on the top and side → The state of the sample during heating can be observed from the side (contact angle) and from above (wettability) ■ Uses an IR heating furnace that easily achieves high-temperature conditions ■ Measurements can be taken under controlled atmospheres such as air, inert gas, or vacuum *For more details, please contact us or download the PDF materials.*
Inquire About This Product
Related Videos
basic information
【Other Features】 ■ Compact size of 162W×160H×382L mm ■ Sealed structure inside the furnace allows for vacuum and gas equipment ■ Clean heating environment possible due to lamp heating ■ Rapid heating possible with optional rapid cooling mechanism ■ Can be combined with zoom lenses and microscopes ■ Optional feature allows for observation of samples during heating while attaching temperature and time for video recording 【Specifications】*Excerpt ■ Observation mechanism: Low magnification (7x) to high magnification (over 500x) ■ Heating method: Infrared 5 parabolic reflector heating method ■ Temperature range: RT to 1300℃ ■ Heating speed: Over 1000℃/min ■ Heater: 200V-1kW or 1.5kW or 2kW × 5 units (determined by temperature and sample) ■ Required power supply: 200V-25A or 37.5A or 50A (depending on lamp specifications) ■ Atmosphere control device: - Gas introduction mechanism (manual, automatic, flow adjustment, multiple gas types) - Vacuum gas replacement mechanism (manual, automatic, pump types) 【Application Specifications】 ■ Temperature range: RT to 1300℃ ■ Heating area: 10 mm square ■ Atmosphere: Atmospheric, inert gas, vacuum ■ Observation direction: Horizontal, vertical ■ Comes with automatic contact angle measurement software
Price information
-
Delivery Time
Applications/Examples of results
【Applications】 ■ Casting ■ Brazing ■ Soldering ■ Lubricants ■ Adhesives ■ Research and Development ■ Simulation of Heating Processes ■ Setting Conditions for Heating Processes etc. *For more details, please contact us or download the PDF materials.
