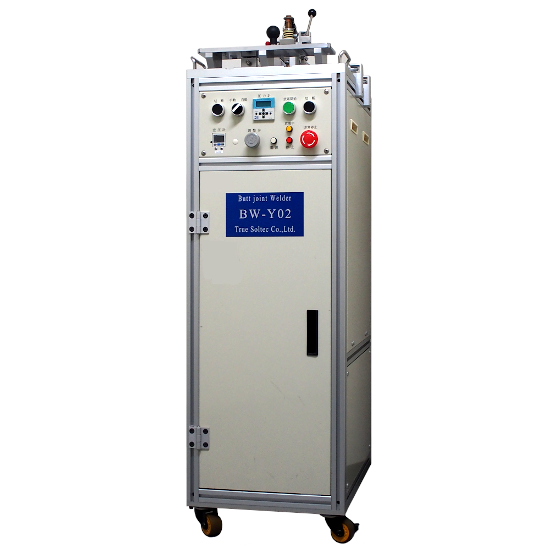

Welding machine for terminal carrier 'BYW-02'

basic information

◆Welding Specification - Camber: Within 6mm per 1000mm - Shift: Within: 0.2mm - Bead height: Within 0.1mm - Pitch error: ±0.05mm - Pull strength: Endurable 8kg weight - Bending resistance: Endurable winding of radius 300mm ◆Product Specification - Object: Width: Width： Max 40mm, Thickness：Max 0.65mm, Material：Iron, phosphor bronze, copper, brass, stainless - Weld point: 1 or 2 point - Voltage / Current: 2.7～5.3V / 0.5～9.9kA - Air pressure: 5kg/cm² - Power supply: AC200V・50/60Hz - Temperature / Humidity: 0～40°C Max 85% - Size: W460mm x D500mm x H1100mm - Weight: About115kg *For more details, please refer to the PDF document or feel free to contact us through our website.

Price range

Delivery Time

Applications/Examples of results

【Introduction Example】 ◆Elimination of wire joints after inline inspection! Previously, in inline inspections, after cutting defective products, the terminals were joined with wire. However, depending on the quality of the joint, the terminals could not be wound properly during the winding process, leading to deformation and winding defects. Additionally, in the subsequent process (assembly process), production had to be stopped every time a wire joint appeared. ↓ After the introduction of BWY-02... ↓ By welding the carrier part, winding defects caused by unstable wire joints have been reduced to zero!! Moreover, the elimination of wire joints in the subsequent process (assembly process) has removed the need to stop production, resulting in a significant increase in efficiency!! ◆Reduction of material loss in the assembly process! Shortening setup time! In the assembly process, when material shortages occurred, it required resetting the materials within the assembly device, and in some cases, materials had to be discarded, putting pressure on both time and costs in the production area. ↓ After the introduction of BWY-02... ↓ The hassle of resetting materials has been eliminated, successfully shortening setup time!! Furthermore, production can continue without discarding materials before and after shortages!!
