Essential for those in the various industrial furnace, ceramic furnace, and electric furnace industries! Nano Board
This product forms countless nanoscale fine particles and contains high-performance infrared reflective materials, which can minimize heat conduction, convection, and radiation to the greatest extent.

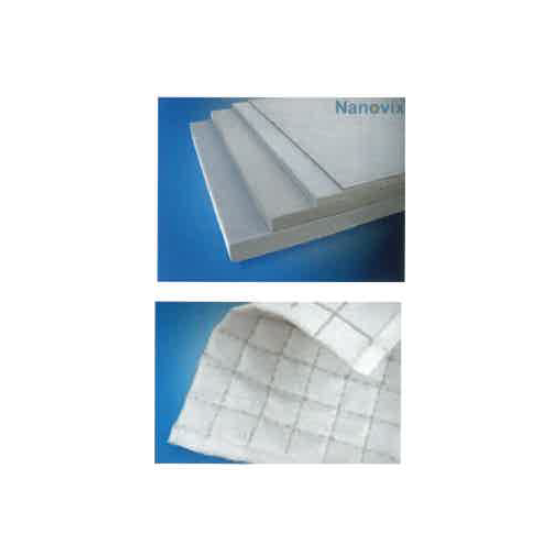

The "AC-1000/AC-1000-Flex" is a new high-performance insulation material (Microporous Insulation) manufactured based on the "theory of fine porous structures." It is an excellent high-performance insulation material that significantly undercuts the thermal conductivity of still air. Composed of SiO2 particles ranging from 7 to 12 nm, it forms countless nanoscale fine structures internally and contains high-performance infrared reflective materials, which can minimize heat conduction, convection, and radiation to the greatest extent. 【Characteristics】 ■ Insulation performance is 3 to 4 times greater than standard materials, allowing for reduced insulation thickness. ■ It has low thermal storage and low thermal conductivity, making it usable for a long time. ■ Easy to process and can be worked with common band saws and drills. *For more details, please download the PDF or contact us.
Inquire About This Product
basic information
【Product Form】 ■Components: SiO2 (60% to 80%): SiC (10 to 30%): Others (5 to 10%) ■In addition to nano boards, we also handle calcium silicate boards, silica boards, etc. *For more details, please download the PDF or contact us.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■ Insulation lining materials, backup materials, and high-temperature sealing materials for various industrial furnaces, ceramic kilns, electric furnaces, etc. ■ Other high-temperature insulation materials *For more details, please download the PDF or contact us.
Company information
Our company is engaged in the development, manufacturing, and sales of auxiliary materials for electronic components, refractory materials, and related products. Additionally, we also conduct research and development, manufacturing, and sales of nanomaterials.
