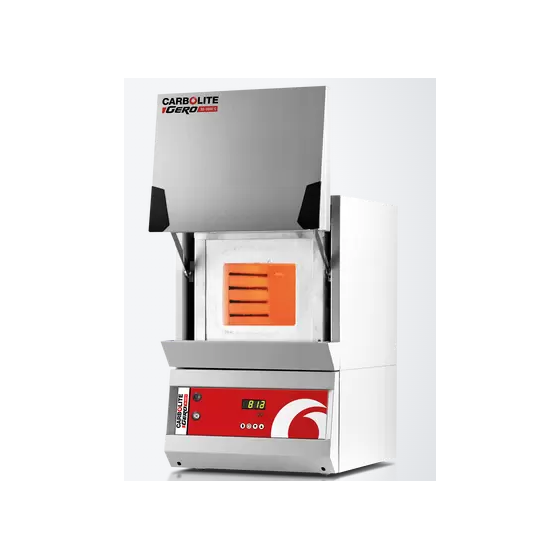

Electric Furnace: RHF - Silicon Carbide Heater Type High-Temperature Chamber Furnace
Carbolite Gero
The RHF series is a chamber furnace that uses silicon carbide heaters.
The RHF series is a chamber furnace that uses silicon carbide heaters, available in four different chamber volumes and three maximum operating temperature combinations of 1400°C, 1500°C, and 1600°C (a total of 12 models). It features a robust construction, high-performance heating elements that enable rapid heating (reaching 1400°C in under 40 minutes), and long service life.
Inquire About This Product
basic information
Standard Specifications Operating temperature 1300℃ (maximum temperature 1400℃), operating temperature 1400℃ (maximum temperature 1500℃), operating temperature 1500℃ (maximum temperature 1600℃) The standard specification temperature controller is PID control model 301. It is possible to adjust the set temperature, heating rate, and maintenance time at the set temperature. Furnace volume: 3L, 8L, 15L, 35L The parallel action door ensures that the inside of the door, which becomes hot, does not face the user. Soft-closing door (3L, 8L models) Silicon carbide heating elements withstand high-temperature operation, have a long lifespan, and can endure the stress of intermittent operation. The material of the furnace floor is hard alumina for the RHF 3 and 8 L models, and silicon carbide for the RHF 15 and 35 L models. Low thermal conductivity insulation material achieves high energy efficiency.
Price range
Delivery Time
Applications/Examples of results
The RHF series is a chamber furnace that uses silicon carbide heaters, available in four different chamber volumes and three maximum operating temperature combinations of 1400°C, 1500°C, and 1600°C (a total of 12 models). It features a robust construction, high-performance heating elements that enable rapid heating (reaching 1400°C in under 40 minutes), and long lifespan.
