Tohoku University Technology: Light curing high strength resin mold: T11-053
Indentation modulus 8.4 GPa! Resin replica mold more solid than polyimide

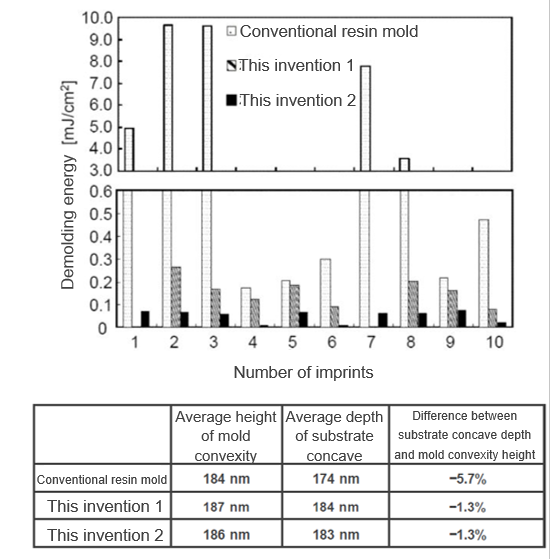

High production cost of mold (plate) is a major challenge to promote the use of nanoimprint technology. Replica mold of an expensive original mold is essential for cost reduction. Especially, replica mold that can resist to repeated usage has been expected. The resin replica mold currently in practical use is limited to a few mold transfer and has low repeat durability. This invention is about a resin replica mold that is solid and repeatedly durable. This mold consists of an organic/inorganic hybrid material with inorganic particles dispersed in resin and has a higher indentation modulus than polyimide. Since fluidity is maintained even the inorganic particles mixing ratio is 60 wt%, the product can be easily manufactured by pressing the original plate mold and curing by light irradiation. Moreover, it is to both thermal and optical nanoimprinting because it has both heat resistance and ultraviolet light transmittance.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
