Tohoku University Technology: Rock core orientation method by image analysis: T20-3110
Possible to orientate rock core objectively and automatically

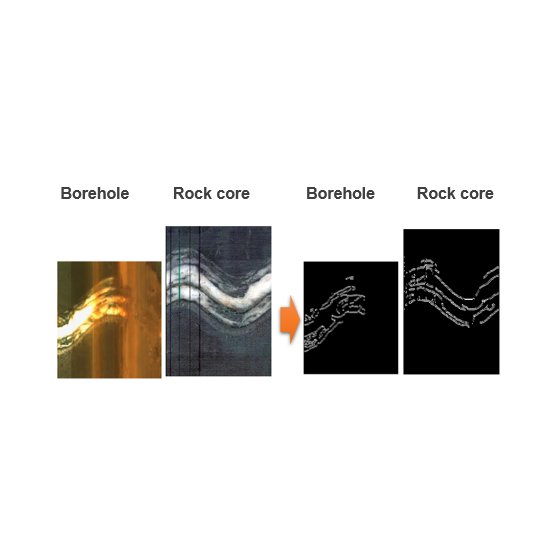

Cylindrical rock sample (rock core) taken from a well is analyzed for underground resources exploitation. Analysis of rock core can be used to estimate subsurface material and to measure physical property of formation in a simple way at low cost. Moreover, if the orientation of rock core at in-situ status is known, it is expected to estimate information on the formation, such as the direction of crustal stress, the anisotropy of permeability and the direction of subsurface fault. There is a conventional method to orientate rock core by tracing the borehole image taken by logging and matching it with the surface image of the rock core. This method takes a long time and leads to a subjective conclusion since the orientation is determined visually. This invention is about a method to orientate rock core by image analysis, which enables orientation in a shorter time with an objective process than conventional method.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
