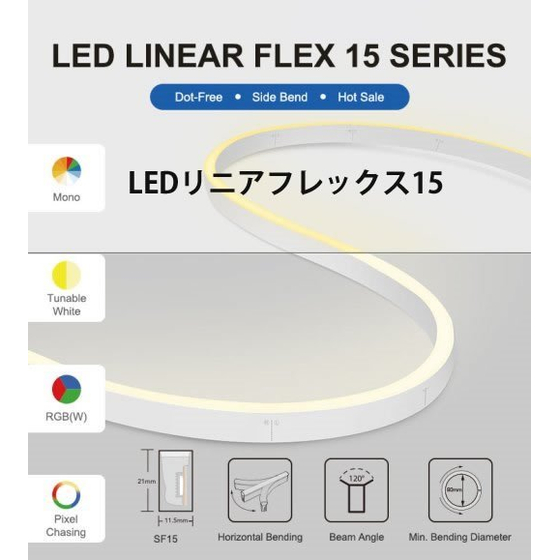

SF15RGB/RGBW Silicone LED Linear Flex Side Emitting PWM/DMX512 (via Decoder)
Bright, can be bent at 60R, and we offer 14 colors in the single color series. We have a range of RGB and RGBW options, and the color temperature of W can be custom-made. With a single-side input, it can be installed up to 10m, and is dimmable, making it suitable for outdoor use, spas, and pools. The surface treatment is smooth and resistant to dirt, with excellent weather resistance, and it is resistant to solvents, seawater, and chemicals, with an IP68 protection rating allowing for use at depths of up to 2m. Waterproof treatment is provided with a sealing plug to prevent moisture ingress from the wiring connection. Additionally, high-density injection-molded connectors are used. The LED substrate has high twisting and bending characteristics, and a thicker circuit design prevents voltage drop. Medical-grade gas-phase silicone is used, providing high strength and transparency, with a high UV grade tube. Cable processing for terminals can also be customized, and options such as clips and rails for installation can be selected according to the situation. It supports 0-10V, PWM, and DALI dimming, and DMX control is possible via a DMX decoder.
Inquire About This Product
basic information
SF15 RGB RGBW LED Linear Flex SF15 Series Applications: Hotels, homes, offices, gardens, buildings, pools, water features, super sento, hot springs Exterior: Silicone (PVC option available for outdoor use) Input Voltage (v): DC 24V Power Consumption: 12W/m Number of LEDs: 60 LEDs/m Cutting Unit: 6 LEDs Cutting Length Unit: 100 mm Minimum Bending Diameter: 80mm LED: Epistar SMD LED 5050 Maximum Operating Distance: Single-side input 10M, Double-side input 20M Beam Angle: 120° Luminous Flux Maintenance: 70,000 Hours L70 @ 25°C, 50,000 Hours L70 @ 50°C Installation: 0°C to 50°C Operating Temperature: -40°C to 55°C Lifespan (hours): 50,000 IP Protection Rating: IP68 for wet environments and underwater up to 2m PWM control, DMX control is also possible via DMX decoder.
Price information
L=10m waterproof processing on both ends
Price range
P3
Delivery Time
P4
※2-3 weeks
Applications/Examples of results
Hotel, home, office, garden, building, pool, water basin, super sento, hot spring Exterior: Silicone (PVC option available for outdoor use)
