60MHz band 5-element Yagi antenna suitable for both transmission and reception for BCP measures.

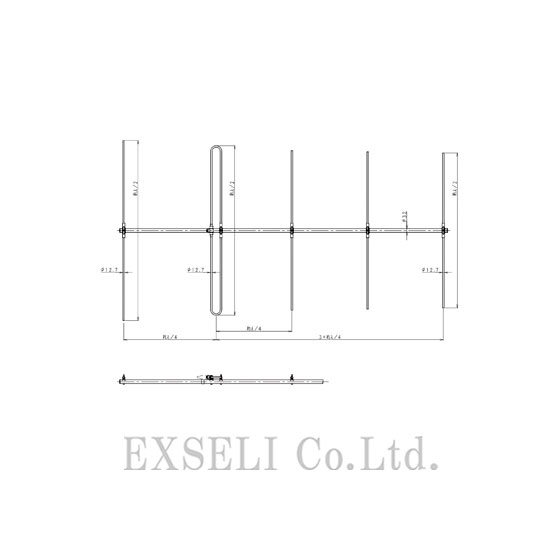

The 5DV-0608 (5DV0608) is a 60MHz band 5-element Yagi antenna manufactured by Nippon Antenna. * The Yagi antenna is a type of antenna made up of three rods of different lengths, functioning as a director, driven element, and reflector, which provides high directivity. It was invented in 1926. * This is a 5-element Yagi antenna suitable for both transmission and reception, designed for municipal disaster prevention administrative radio use. * It is a representative antenna of single directivity, mainly composed of an antenna, reflector element, and director element. * The appearance is simple, with the supply section and element blanket molded from reinforced resin. * It operates at a specified frequency within the range of 54 to 75MHz. The model number varies depending on the frequency band. - 5DV-0608 68.2-69.8MHz - 5DV-0608 55-66MHz When placing an order, please specify the center frequency (fo) in MHz. * The connector is NJ. * The compatible antenna mounting bracket is F-1 (round)-K2 (D). For extremely low-priced sales of earphone microphones, batteries, and more, please leave it to Excelli. * For more details, feel free to contact our company.
Inquire About This Product
basic information
● Made to order. ● Accessories: M6 hex bolt ×1, M6 spring washer ×1, reinforcing washer ×1, waterproof cover ×1 ● Specifications ・Antenna type: 5-element Yagi antenna ・Model name: 5DV-0608 ・Application: For fixed stations, vertical or horizontal polarization, single directional ・Operating frequency: A specified frequency within 54–75MHz ・Input impedance: Nominal 50Ω ・VSWR: 1.5 or less ・Gain (standard value): 11.15dBi ・Directivity (standard value): E-plane half-power beamwidth 22°, H-plane half-power beamwidth 29° ・Front-to-back ratio (standard value): 15dB ・Insulation resistance: At the feed point, dry condition DC500V, 500MΩ or more ・Withstand voltage: At the feed point, dry condition AC1000V for 1 minute with no abnormalities ・Feed point connector: N-J type ・Weight: Approximately 8.8kg ・Wind surface area: Approximately 0.32 square meters ・Maximum wind load: Approximately 716N at 60m/sec ・Wind speed resistance: Maximum instantaneous wind speed of 60m/sec
Price information
Manufacturer's suggested retail price: 200,200 yen (excluding tax) We aim to sell at a lower price than anywhere else. Please contact us for our selling price.
Price range
P3
Delivery Time
Applications/Examples of results
【Usage Example】 ■Outdoor etc.
