No installation work required! Mobile battery and solar options are also available.

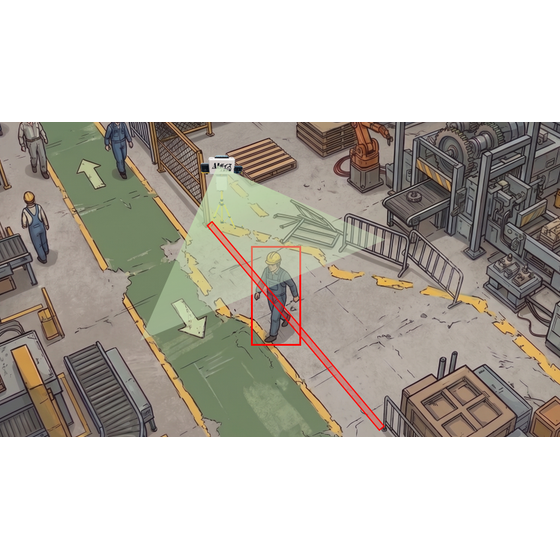

This is an innovative AI camera warning system that automates safety measures on-site. The high-performance AI camera automatically detects pedestrians and workers within designated areas and promptly alerts them to evacuate or take caution using LED warning lights and audio speakers. Key Features and Benefits: ◇ Flexible Detection Area Settings: Detection distances range from 0.5m to 15m, with a maximum angle of 140°. It allows for flexible area construction tailored to the site, such as trapezoids or squares. ◇ Easy Setup via Smartphone: With Wi-Fi connectivity, settings can be intuitively changed from a smartphone or tablet browser without the need for an app. ◇ Excellent Outdoor Weather Resistance: The entire system is designed to be waterproof and dustproof with an IP65 rating (camera is IP69K), allowing for direct outdoor installation without construction work. ◇ Variety of Power Supply Options: In addition to AC100V, it also supports cordless operation via a DC12V connector or mobile battery. ◇ Nighttime Capability (Optional): By selecting an infrared thermal camera, it can detect heat signatures up to 30m away even in complete darkness. This system contributes to thorough accident prevention as a new safety measure to replace the placement of guides. *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
Overall Power Specifications Power Configuration: Compatible with AC100V plug, DC12V connector, and mobile batteries, allowing for outdoor installation without the need for construction. Waterproof and Dustproof Standards: The entire system is designed for outdoor use equivalent to IP65 (monitor storage box: IP65, wiring box: IP65). AI Camera Specifications Resolution and Frame Rate: 1920×1080P, 25 or 30fps. Field of View and Detection Range: Horizontal field of view of 140°. Detection distance ranges from a minimum of 0.5m to a maximum of 20m (maximum 12m when set to maximum angle of 140°). High Durability Design: Operating temperature range of -20 to +70 degrees, vibration resistance of 5.9G, and boasts the highest waterproof standard of IP69K. Audio Alarm Speaker Specifications Rated Voltage and Tolerance Range: DC12–24V (tolerance range: DC10.8 to 26.4V). Sound Pressure and Volume Adjustment: Capable of producing a loud volume of over 87dB, with volume adjustable from Min to Max. Environmental Performance: Operating temperature range of -10 to +50 degrees, with a protection rating of IP54. Optional Features Thermal Camera: Capable of thermal detection and sensing up to 30m ahead in complete darkness through infrared detection. *For more details, please feel free to contact us.
Price range
P3
Delivery Time
※Prices may vary depending on options, so please contact us.
Applications/Examples of results
To prevent contact accidents between heavy machinery or vehicles and pedestrians or workers, the main installation scenes are as follows: 1. Safety measures at construction sites Installed in areas where construction vehicles and heavy machinery frequently move, such as restricted areas and blind spots of heavy machinery. When pedestrians or workers enter dangerous areas, the AI camera automatically detects them and prompts evacuation with a loud voice. It takes on the role of guiding personnel that previously relied on human observation. 2. Separation of people and vehicles within factories and logistics warehouses Implemented in factories and warehouses where the paths of transporting vehicles like forklifts and trucks intersect with those of workers moving on foot. It prevents accidents caused by sudden appearances or carelessness. 3. Vigilance monitoring in dark places or at night (optional) In completely dark areas where lighting does not reach or at night, infrared thermal cameras are utilized. With heat detection, it can reliably detect pedestrians up to 30 meters away, making it effective for security and safety during nighttime work or in material storage areas. No installation work is required, and it can operate anywhere simply by setting up a tripod and connecting to AC 100V or a mobile battery, making it ideal for short-term events or dynamic sites where conditions change daily.
Detailed information
-
Photo when using the stand
catalog（1）
Download All Catalogs
