Prevent accidents involving pedestrians! Easily change settings on your smartphone or tablet with a simple setup tool.
Preventing contact accidents between work vehicles such as forklifts and walking workers in factories, logistics warehouses, and construction sites is an extremely important issue. The "Pedestrian Detection AI Camera Mutual Warning System" is a groundbreaking safety management solution that uses high-performance AI cameras to automatically detect pedestrians in real-time and simultaneously issue warnings to both drivers and surrounding pedestrians, encouraging mutual hazard avoidance behavior. The AI accurately identifies individuals within the detection area captured by the camera, providing notifications not only through visual confirmation on the screen but also through sound and light (loud alarms and high-brightness LED flashlights). It is also possible to configure the system to detect "vehicles only." The settings for the detection area and sensitivity can be easily adjusted via a local Wi-Fi connection from a smartphone or tablet without the need for a dedicated app. In addition to having high waterproof performance (such as IP69K) to withstand harsh working environments, we offer a wide range of models tailored to site needs, including those with heaters for cold regions and thermal cameras for low-light conditions. We strongly support safety measures and significantly reduce accident risks on-site.
Inquire About This Product
basic information
■Pedestrian Detection AI Camera (QRC-AD32B) - Image Quality: Full HD 1080P high quality - Waterproof Performance: Compliant with IP69K standards (easy installation with strong magnets) - Function: Pedestrian AI detection (switchable to vehicle detection), detection range approximately 0.5m to 20m ■Easy Setup Tool (Calibration Tool: QRC-FA575RK) - Setup Method: Local Wi-Fi connection (compatible with smartphones and tablets, no app required) - Adjustment Features: Free setting of detection area, sensitivity and display adjustments, etc. ■Warning and Display Unit - 7-inch waterproof touch monitor (QRC-M140): Connects up to 4 units simultaneously - Driver warning & external pedestrian warning audio alarm (QRC-OY0002): Loud audio (108 decibels, "A vehicle is approaching! Please be careful!"), high-brightness LED flash, waterproof design (IP66/IP54) - Flashlight (QRC-FL-R): Can be configured with red LED light only ■Various Options - Model with heater (QRC-AD32BH): Supports operation in cold environments down to -40 degrees Celsius - Thermal camera model (QRC-TC639T): Detects vehicles up to 510m and pedestrians up to 220m in darkness using thermal detection
Price information
This system allows you to choose a flexible configuration that suits your usage environment and the specifications of your work vehicle. We offer various options, including a "full set configuration" that includes a 7-inch waterproof monitor and various warning units, a "no monitor configuration" that does not use a monitor, and a "camera and flashlight only configuration" that simplifies warning displays, all tailored to your budget and installation conditions. For detailed estimates and inquiries about equipment configurations, please feel free to contact us through "Free Estimate and Inquiries."
Price range
P3
Delivery Time
Applications/Examples of results

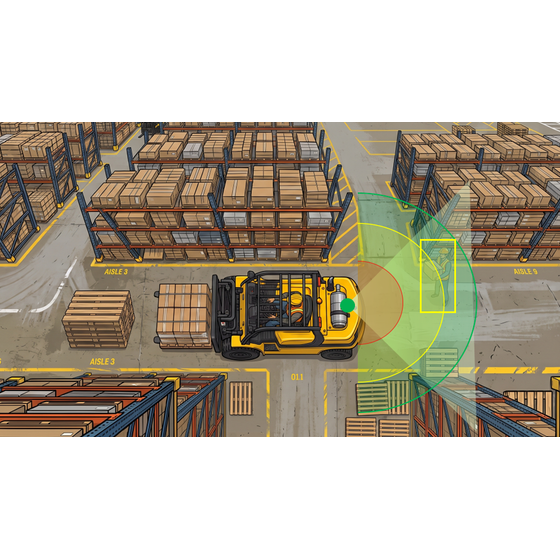

This system is currently under application for the Ministry of Land, Infrastructure, Transport and Tourism's new technology information provision system "NETIS" and is being introduced as a safety measure in a wide range of industrial fields such as manufacturing, logistics, and construction. ■ Utilization in Forklifts and Logistics Warehouses AI cameras are installed in front of and on the sides of forklifts in logistics warehouses, which often have many blind spots due to stacked cargo. This prevents pedestrian accidents during turning and reversing. With powerful magnet mounts and dedicated stays for pillar clamping, it can be quickly implemented with minimal modifications to the vehicle. ■ Safety Management at Construction Sites with Heavy Machinery Prevents worker contact accidents around large machinery such as hydraulic excavators and wheel loaders. A loud audio alarm (108 decibels) and high-brightness LEDs ensure that both drivers and pedestrians are reliably warned of danger, even in noisy outdoor environments. ■ Special Environments and Nighttime Work Sites In refrigerated and frozen warehouses (sub-zero environments), a heater-equipped model is used, while thermal cameras with heat detection are employed for outdoor nighttime work or dark areas, allowing for a stable contact prevention system that can be established regardless of the environment.
